The Arista AP-C230 4x4 Tri Radio 802.11ax (WiFi 6) MU-MIMO WAP offers integrated omnidirectional antennas and a maximum data rate of up to 0.6 Gbps throughput for the 2.4 GHz radio, as well as up to 2.4 Gbps throughput for the 5 GHz radio in the regulatory domain - MU-MIMO.
With a configuration of a quad-stream AC-compatible access point delivering an aggregate frame rate that exceeds multi-gigabit performance. This device is designed specifically for high-density environments such as schools, offices, or public venues where demand on wireless networks can be substantial due to its capability features like fast roaming between multiple Access Points without any service interruption caused by stack changes.
Dynamic optimization through ClientMatchPro technology ensures consistent user experience even if network conditions change rapidly, coordinating load balancing among more than one access point within the same room.

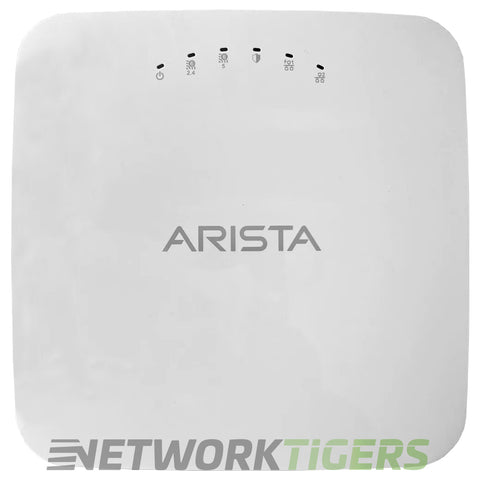

Arista AP-C230 4x4 Tri Radio 802.11ax (WiFi 6) MU-MIMO WAP
- Wi-Fi Standard : IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
- Licensing : Requires a license to be configured and monitored - Licence is sold separately and can be purchased directly from Arista
- Suggested Use : Critical, high-density networks, large schools, large remote offices, auditoriums, meeting rooms, and enterprise campuses, indoor deployment
- Radios : 3x total, 1x 2.4GHz, 1x 5GHz, plus a dedicated 2x2 dual-band scanning radio for WIPS and RF analysis
- Spatial Streams per Radio : 2x streams on 2.4GHz using 2x2 by 2, 4x streams on 5GHz using 4x4 by 4, and 2x streams on the multipurpose scan radio, for 6x access streams total plus the scan radio
- Maximum Data Rate : 0.6 Gbps on 2.4GHz and up to 2.4 Gbps on 5GHz
- Bluetooth / IoT Radios : Integrated 2.4GHz Bluetooth Low Energy (BLE) radio
- PoE Standard : PoE+ required for full functionality, USB is disabled unless PoE+ is provided
- DC Power Input : 12V DC input, 5.5mm barrel connector, optional universal AC power supply available separately, part number PWR-AP-W4 (12VDC, 3.3A), not included
- Uplink Ports : 1x 5 Gigabit Ethernet (PoE+ compliant, MACsec capable via future update) RJ-45, and 1x 1 Gigabit Ethernet RJ-45
- Other Ports : 1x USB 2.0 port, Type A (reserved for future use), 1x Console port, RJ-45 (RS-232 serial, 115200 bps), plus a pinhole reset button
- Antenna Type : Integrated modular high efficiency PIFA antennas, 4x on 5GHz (peak gain 3.9dBi), 2x on 2.4GHz (peak gain 3dBi)
- Mounting Options : Wall and ceiling mounting supported, refer to Arista's separate Access Points Mounting Brackets Guide for specific kit part numbers
- Mounts Included : Mounting kits are sold separately
- Model Number : AP-C230
- Part Number : AP-C230
- Condition : New
- One (1) NEW Arista AP-C230 Wi-Fi 6 802.11ax Internal Omni Directional Antenna Indoor WAP as described above
