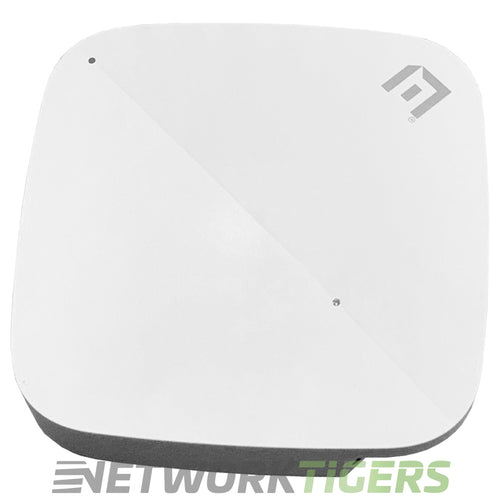

The Extreme AP305C-FCC is an indoor Wi-Fi 6 access point. With internal antennas and options for additional external antennas, this device operates on both the 2.4 GHz and 5.0 GHz frequencies to deliver high-speed wireless connectivity.
This product delivers efficient and secure connections while offering scalability as your network grows. Enhance your wireless capabilities with the Extreme AP305C-FCC Indoor Wi-Fi-6 Access Point.
Extreme AP 305C-FCC: ExtremeCloud IQ: Indoor Wi-Fi6 AP, 2x2 radios with Dual 5GHz and 1x1GbE port. Integrated light/power sensors and BLE. AI/ML green mode. Internal antennas. Built-in ceiling mounts.
- Wi-Fi Standard : Wi-Fi 6 - EEE 802.11a/b/g/n/ac/ax
- Managed By : Cloud platform, or on-premises via a controller appliance or distributed operating system, dual-persona firmware selectable at boot or later
- Suggested Use : Budget-conscious enterprises needing high-density indoor Wi-Fi 6 performance without sacrificing features, general indoor deployment
- Region : US
- Radios : 2x, one 2.4GHz and one 5GHz, with software-selectable radio modes allowing fixed dual-band or dual 5GHz operation
- Spatial Streams per Radio : 2x streams on both 2.4GHz and 5GHz using 2x2 by 2, for 4x total combined
- Maximum Data Rate : Up to 574 Mbps on 2.4GHz and 1200 Mbps on 5GHz, up to 2.4 Gbps concurrently across both radios
- Bluetooth / IoT Radios : Integrated Bluetooth Low Energy radio, note a non-BLE variant of this SKU exists with identical functionality otherwise
- PoE Standard : 802.3af required for full functionality, USB port draws additional power beyond 500mA requiring 802.3at
- Uplink Ports : 1x 10/100/1000 Base-T Ethernet, PoE (802.3af) RJ-45
- Other Ports : 1x USB 2.0, Type A, 5V, 0.9A
- Antenna Type : Integrated internal antennas, 3x dual-band 2.4/5GHz omnidirectional plus 1x single-band 5GHz omnidirectional, peak gain 2.67dBi (2.4GHz) and 3.75-3.97dBi (5GHz)
- Mounting Options : Wall mount, junction box/wall mount, beam mount, or various ceiling grid brackets, all sold separately, plus a built-in Kensington lock slot
- Mounts Included : Built-in ceiling mount clips for 15/16 in flush ceiling tile rail systems, integrated directly into the AP,
- Model Number : AP305C-FCC
- Part Number : AP305C-FCC, AP 305C-FCC
- Condition : Seller refurbished
- One (1) Seller refurbished Extreme AP305C-FCC Wi-Fi 6 802.11ax US Internal Omni Dir Antennas Indoor WAP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
