The Extreme AP 505i-FCC is a dual-radio Wi-Fi 6 access point with internal antennas, operating on frequencies of 2.4-2.5 GHz and 5.150-5.850 GHz. It offers impressive maximum data rates - up to HE11 in the 5GHz range and up to HE11 in the 2.4GHz range within US regulatory standards for wireless communication devices.
This WAP is designed for high-performance networking needs, providing reliable connectivity in various environments that require robust wireless capabilities at fast speeds across multiple channels simultaneously without sacrificing security or stability.

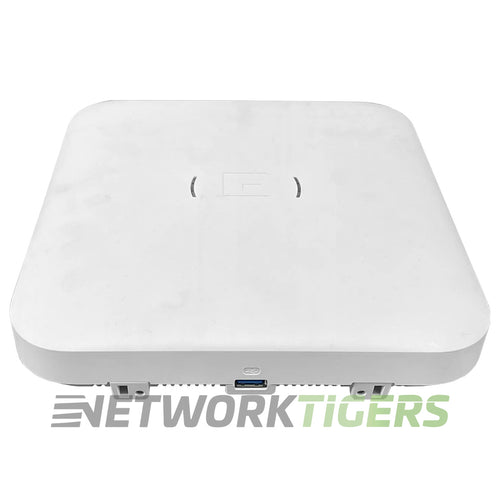

Extreme AP 505i-FCC 505i Dual Radio 802.11ax Wi-Fi 6 Internal Antenna WAP
- Wi-Fi Standard : IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
- Managed By : Cloud platform, or on-premises via a controller-based or distributed operating system, controllerless virtual controller mode supports up to 64 APs, or a hardware/VM controller supporting up to 25000 APs
- Suggested Use : High-density indoor environments, retail, education, hospitality, and healthcare verticals
- Region : US
- Radios : 2x, one 2.4GHz and one 5GHz, dual radio operation
- Spatial Streams per Radio : 4x streams on both 2.4GHz and 5GHz using 4x4 by 4, for 8x total combined§
- Maximum Data Rate : Up to 1148 Mbps on 2.4GHz and 4800 Mbps on 5GHz
- Bluetooth / IoT Radios : Integrated Bluetooth Low Energy radio, 802.15.4 compliant, supporting Thread, iBeacon, and Eddystone
- PoE Standard : 802.3at required for full functionality, 802.3af supported with reduced functionality - PoE Injector (PD-9001GR-ENT) sold separately
- DC Power Input : Supported via optional 12VDC, 2A power supply, part number 37219, 2.5mm by 5.5mm connector, sold separately
- Uplink Ports : 1x 100/1000/2500 Ethernet RJ-45 with PoE (802.3at, 802.3bz supported), plus 1x 10/100/1000 Ethernet RJ-45
- Other Ports : 1x USB 3.0, Type A, 0.5A
- Antenna Type : Integrated internal antennas, 4x omnidirectional single-band 2.4GHz, 4x omnidirectional single-band 5GHz, plus 1x omnidirectional single-band 2.4GHz dedicated to the BLE radio
- Mounting Options : Mounting plate for indoor APs (37201, included in box), universal mounting kit (KT-135628-01, requires 37201 bracket), beam clip accessory (BRKT-000147A-01), plus various WS-MBI ceiling/wall brackets (30518, 30516, 37211), all additional kits sold separat
- Mounts Included : Mounting plate (37201) included in the box with the AP
- Model Number : AP505i-FCC
- Part Number : AP505i-FCC
- Condition : Seller refurbished
- One (1) Seller refurbished Extreme AP505i-FCC Wi-Fi 6 802.11ax US Internal Omni Antenna Indoor WAP as described above
- One (1) Mount Plate Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Injector Not Included
- Wall Mount Bracket Not Included
- Power Adapter Not Included
