APC AP7811 Metered 12x IEC 320 C13 4x C19 30A 208V 2U Rack Mounted PDU

APC AP7811 Metered 12x IEC 320 C13 4x C19 30A 208V 2U Rack Mounted PDU

Ask for quote
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-4849
UPC: 731304246589

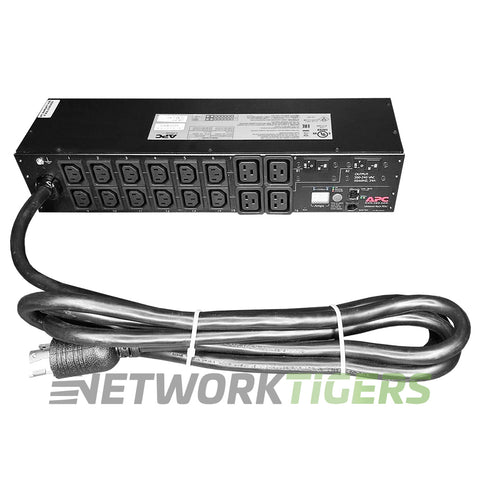

The APC AP7811 Metered PDU is a reliable and efficient power distribution unit designed for rack-mounted installations. This 2U device features twelve IEC 320 C13 outlets and four C19 outlets, offering versatile connectivity options for your equipment.

With its metering capabilities, this PDU allows you to monitor real-time power consumption data at the outlet level. It gives you valuable insights into energy usage patterns, enabling informed decisions on load balancing or capacity planning.

Operating at a maximum current of 30A and supporting an input voltage of 208V, the AP7811 ensures sufficient power delivery while maintaining high levels of efficiency. Its rugged design makes it suitable for demanding environments with limited space availability in server rooms or data centers.

APC AP7811: 12x IEC 320 C13, 4x IEC 320 C20 output connections. This PDU is a Metered Rack and has a 12-foot cord.


  • Power Output Connections : 12x IEC 320 C13, 4x IEC 320 C20
  • Power Output Voltage : 208 VAC
  • Management Interface : Web, SNMP, and Telnet
  • Input Connection : 1x NEMA L6-30P
  • Input Voltage : 200–240 V
  • Input Frequency : 50/60 Hz
  • Input Amperage : 30A - Regulatory Derated Input Current (North America) = 24A
  • Cord Length : 12 feet (3.66 meters)
  • Rack Mounts : Included
  • Form Factor : 2U
  • Model Number : AP7811
  • Part Number : AP7811
  • Condition : New


  • One (1) New APC AP7811 Metered 12x IEC 320 C13 4x C20 30A 2U Rack Mounted PDU 200-208V as described above
