The Cisco C1300-16P-2G Catalyst 1300 switch offers robust features for efficient network management. It includes 16 PoE+ RJ-45 ports with a total switching capacity of 36 Gbps and supports up to two additional Gigabit SFP uplinks.
The forwarding rate peaks at 26.78 Mpps, ensuring reliable data handling across all connected devices. This model provides support for up to 4,093 VLANs and accommodates large-scale deployments with its MAC address table size reaching up to 16,000 entries.
Its Power over Ethernet Plus (PoE+) functionality simplifies device connections by delivering both power and data through the same cabling system—supporting IP phones, cameras or wireless access points without external adapters required. High port density combined with advanced traffic-handling capabilities make deployment flexible while meeting scaling requirements efficiently unaffiliated boundary
Cisco C1300-16P-2G Catalyst 1300 switch with 16x 1GB PoE+ RJ-45 network ports and a further 2x 1GB SFP ports for uplink.
- Network Ports : 16x 1 Gigabit Ethernet PoE+ RJ-45
- Uplink Ports : 2x 1 Gigabit Ethernet SFP
- Management Ports : 1x 1 Gigabit RJ-45, USB Type C - Switch is managed through the Cisco Business Dashboard
- Stacking Ports : This model is not stackable
- Packet Buffer : 1.5 MB
- Fan Module Options : Fanless
- Power Supplies Included : 1x Internal AC PSU - 100-240V 50-60 Hz, internal, universal
- PoE Budget : 120W
- Switching Capacity : 36.0 Gbps
- Forwarding Rate : 26.78 Mpps
- MAC Address Table Size : 16,000
- VLAN's : Support for up to 4093 VLANs simultaneously
- DRAM and Flash : 1 GB DDR4 DRAM, 512 MB Flash
- Model Number : C1300-16P-2G
- Part Number : C1300-16P-2G
- Condition : New

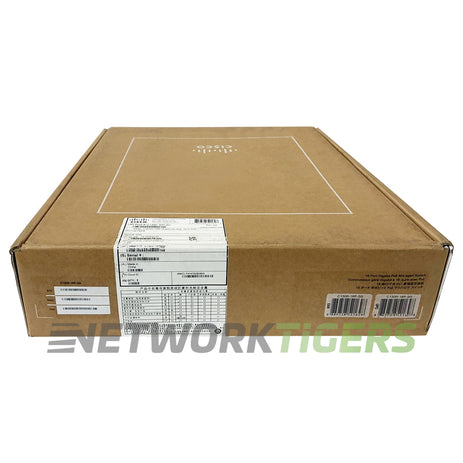

- One (1) New Cisco C1300-16P-2G Catalyst 1300 16x 1GB PoE+ RJ-45 2x 1GB SFP Switch as described above
