The Cisco C1300-16XTS Catalyst 1300 switch delivers a switching capacity of 320 Gbps and a forwarding rate of 238.1 Mpps. It features eight 10GBASE-T RJ-45 ports and eight 10Gb SFP+ ports, providing flexible connectivity options.
Stackable with models such as the C1300-12XT-2X, C1300-12XS, and others in Family 2 stacking group, this switch supports high-speed data transfer across multiple units. The MAC address table holds up to 16,000 entries for efficient traffic management. Powered by an ARM dual-core processor at 1.4 GHz with module expansion slots available for scalability needs.

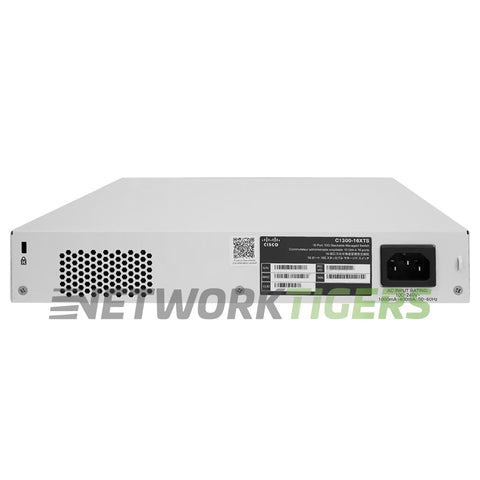

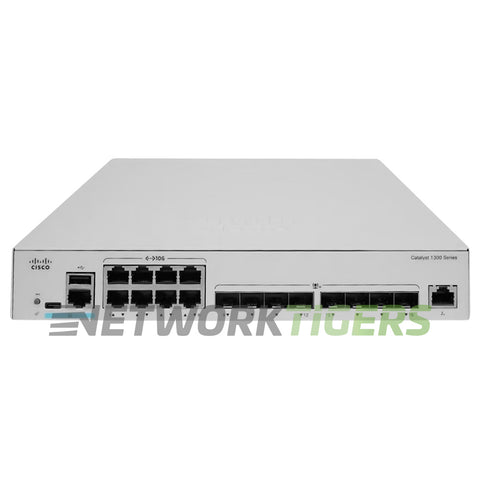

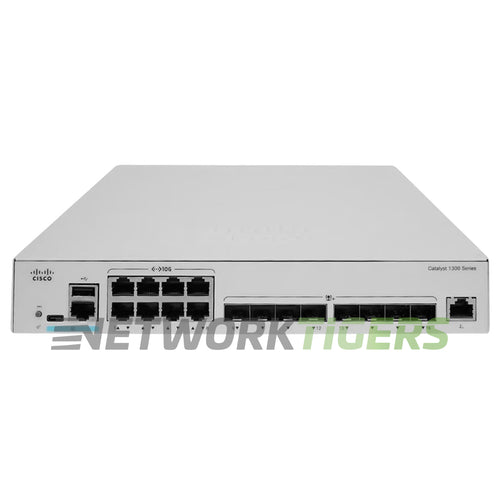

Cisco C1300-16XTS: Catalyst 1300 8x 10GB RJ-45 8x 10GB SFP+ Switch.
- Network Ports : 8x 10 Gigabit Ethernet RJ-45
- Uplink Ports : 8x 10 Gigabit Ethernet SFP+
- Management Ports : 1x Standard RJ-45 Console, 1x USB Type C port - Managed via the The Cisco Business Dashboard
- Stacking Ports : Uplink ports can be used for front panel stacking
- Stacking Options : Up to 8 switches in a stack. Up to 200 ports managed as a single system with hardware failover
- Stacking Cable Options : Cost-effective high-speed 10 Gigabit Ethernet fiber interfaces
- Stacking Family : Family 2 - Switch can be stacked with the following - C1300-12XT-2X, C1300-12XS, C1300-16XTS, C1300-24XS, C1300-24XT, C1300- 24XTS
- CPU : ARM dual-core at 1.4 GHz
- Fan Module Options : 1 (Fixed / Internal)
- Power Supplies Included : 1x Internal AC (100-240V 50-60 Hz)
- Switching Capacity : 320 Gbps
- Forwarding Rate : 238.1 Mpps
- MAC Address Table Size : 16,000
- Packet Buffer : 3 MB
- DRAM and Flash : 1 GB DDR4, 512 MB Flash
- Model Number : C1300-16XTS
- Part Number : C1300-16XTS
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C1300-16XTS Catalyst 1300 8x 10GB RJ-45 8x 10GB SFP+ Switch as described above
- One (1) Power Cord Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
