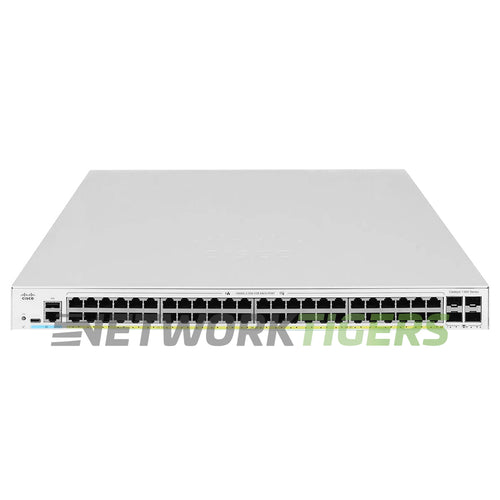

The Cisco C1300-48FP-4X is a stackable switch with 48x 1Gb PoE+ RJ-45 ports and 4x 10Gb SFP+ uplinks. It supports stacking with other Catalyst 1300 models, including the C1300-16P-4X, C1300-24T-4X, and more.
The switch features an ARM dual-core CPU at 1.4 GHz, providing a switching capacity of 176 Gbps and a forwarding rate of 130.94 Mpps. With support for up to 16,000 MAC addresses and a packet buffer size of 1.5 MB, it ensures efficient data handling in high-density deployments. Stacking enhances scalability by allowing multiple units to function as one logical device within compatible family members.
Cisco C1300-48FP-4X: Catalyst 1300 switch with 48x 1GB PoE+ RJ-45 network ports and a further 4x 10GB SFP+ ports for uplink and stacking.
- Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ-45
- Uplink Ports : 4x 10 Gigabit Ethernet SFP+
- Management Ports : 1x Standard RJ-45 Console, 1x USB Type C port,
- Stacking Ports : Uplink ports can be used for front panel stacking
- Stacking Options : Up to 8 switches in a stack. Up to 200 ports managed as a single system with hardware failover
- Stacking Cable Options : Cost-effective high-speed 10 Gigabit Ethernet fiber interfaces
- Stacking Family : Family 1 - Switch can be stacked together with the following units - C1300-16P-4X, C1300-24T-4X, C1300-24P-4X, C1300-24FP-4X, C1300-48T-4X, C1300-48P-4X, C1300-48FP-4X, C1300-8MGP-2X, C1300-24MGP-4X, C1300-48MGP-4X
- CPU : ARM dual-core at 1.4 GHz
- Fan Module Options : 1 - Fixed Internal
- Power Supplies Included : 1x Internal AC (100-240V 50-60 Hz)
- PoE Budget : 740W (Model supports 802.3af PoE and 802.3at PoE+)
- Switching Capacity : 176.0 Gbps
- Forwarding Rate : 130.94 Mpps
- MAC Address Table Size : 16,000
- Packet Buffer : 1.5 MB
- DRAM and Flash : 1 GB DDR4, 512 MB Flash
- Model Number : C1300-48FP-4X
- Part Number : C1300-48FP-4X
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C1300-48FP-4X Catalyst 1300 48x 1GB PoE+ RJ-45 4x 10GB SFP+ Switch as described above
- One (1) Power Cord Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
