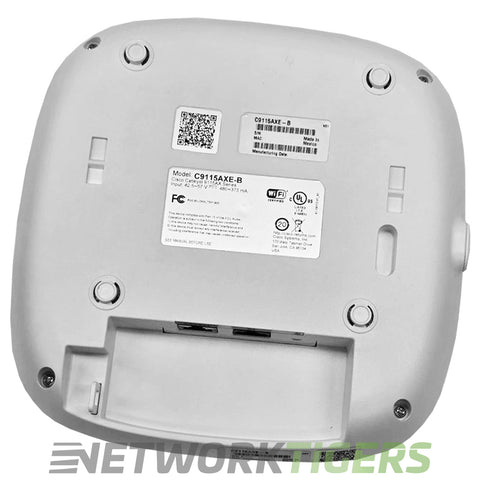

Cisco C9115AXE‑B by Cisco Systems is an external‑antenna wall or ceiling‑mount wireless access point in the Catalyst 9115 Series. It supports IEEE 802.11a/b/g/n/ac/ax Wi‑Fi 6 with 4x4:4 MIMO, dual Gigabit Ethernet uplink ports, and up to 5 Gbps aggregate wireless throughput.
The model operates on 2.4 GHz and 5 GHz bands, supports Wi‑Fi 6 OFDMA and MU‑MIMO clients, and can be powered through 802.3at PoE+ or a local DC source. Two Ethernet ports support Link Aggregation for higher backhaul capacity. Compatibility with Cisco DNA Center and Wireless LAN Controllers enables centralized configuration. External antenna connectors allow coverage tuning for specific deployment layouts.
Cisco C9115AXE-B: Indoor, challenging environments, with external antennas.
- Wi-Fi Standard : IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6).
- Managed By : Wireless LAN controllers, Catalyst 9800 Series, or legacy 3500/5520/8540 and virtual controller
- Suggested Use : General indoor enterprise deployment, networks of all sizes, external antenna suits environments needing customized coverage patterns.
- Region : Region B (US)
- Radios : 2x, one 2.4GHz and one 5GHz
- Spatial Streams per Radio : 4x streams on both 2.4GHz and 5GHz using 4x4 by 4, for 8x total combined.
- Maximum Data Rate : Up to 5.38 Gbps combined, 160MHz on 5GHz and 20MHz on 2.4GHz.
- Bluetooth / IoT Radios : Integrated Bluetooth Low Energy 5.0 radio for location tracking and wayfinding use cases.
- PoE Standard : 802.3at required for full 4x4/4x4 operation at 2.5G link speed with USB enabled, 802.3af reduces both radios to 2x2, downgrades Ethernet to 1G, disables USB - AIR-PWRINJ6= (802.3at) or AIR-PWRINJ5= (802.3af only) available separately.
- DC Power Input : This model relies on PoE only.
- Uplink Ports : 1x Multigigabit Ethernet RJ-45, supporting 100/1000/2500.
- Other Ports : 1x Management console port RJ-45, 1x USB 2.0 port.
- Antenna Type : External, connectorized, no internal antennas, certified for gains up to 6dBi.

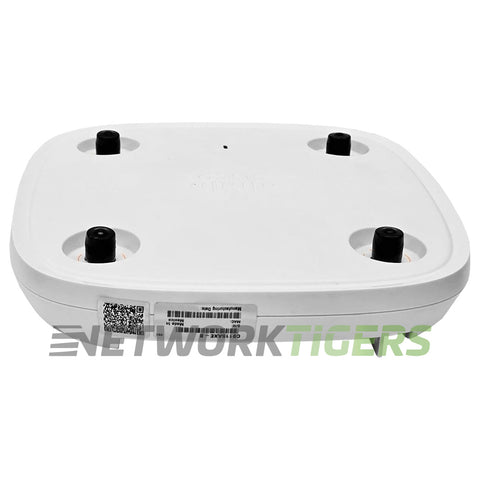

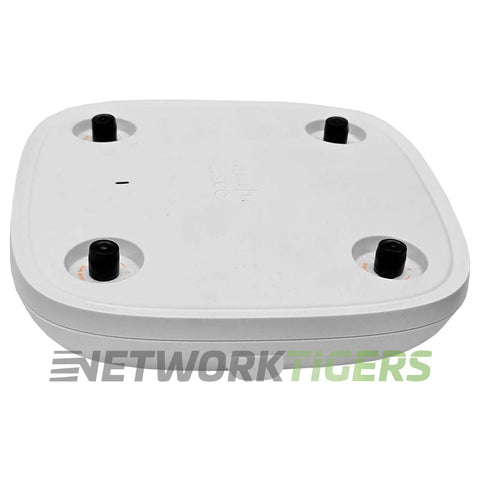

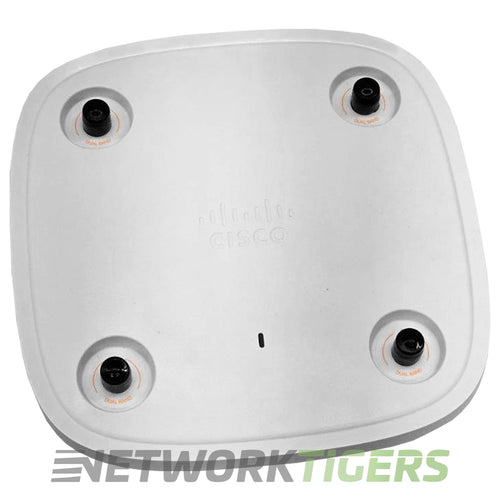

- Antenna Ports : 4x RP-TNC connectors, labeled A B C D, located on top of the unit, supports up to 4x external dual-band TX/RX antennas.
- Antenna Options : AIR-ANT2524Dx-R (dipole), AIR-ANT2566P4W-R (patch), AIR-ANT2524V4C-R or AIR-ANT2544V4M-R (omni), sold separately.
- Mounting Options : AIR-AP-BRACKET-1 (flush ceiling, lowest profile, default) or AIR-AP-BRACKET-2 (universal, electrical box, NEMA, or wall).
- Mounts Included : None Included
- Model Number : C9115AXE-B
- Part Number : C9115AXE-B
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C9115AXE-B Catalyst 9115 Wi-Fi 6 802.11ax US External Antenna WAP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Injector Not Included
- Wall Mount Bracket Not Included
