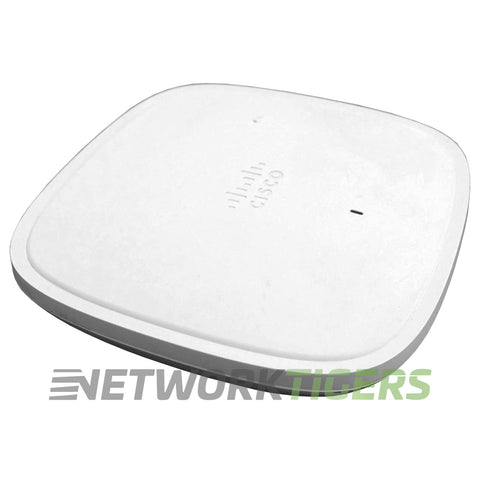

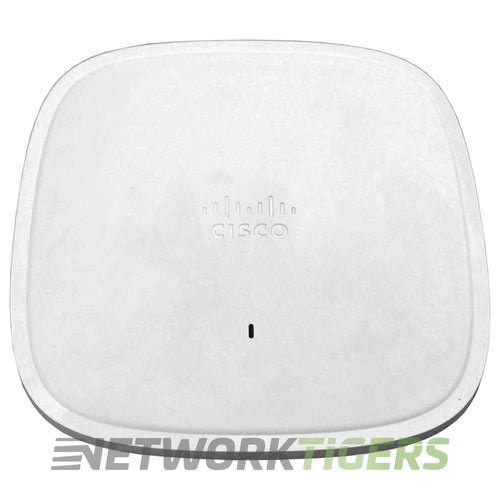

The Cisco C9117AXI-EWC-B is an internal-antenna wireless access point manufactured by Cisco. It features embedded wireless controller functionality and supports PHY data rates up to 600 Mbps (802.11n), 3.5 Gbps (802.11ac), and 5 Gbps at 5 GHz using the IEEE 802.11ax standard.
This model operates in both the 2.4-GHz and 5-GHz frequency bands within the US regulatory domain, providing dual-band support for client devices under various Wi-Fi protocols including Wi-Fi 6 (802.11ax). The device includes integrated DRAM of 2048 MB for processing functions related to its wireless controller roles or AP operations . Mounting options include ceiling mount configurations, with power delivered via PoE supporting efficient electrical deployment without additional cabling requirements .
Cisco Catalyst 9117AXI Access Point: Indoor environments, with internal antennas, with embedded wireless controller.
- Wi-Fi Standard : IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
- Managed By : Built-in embedded controller, no physical appliance needed, this EWC variant runs the same code as the physical controller platform, making later migration straightforward
- Suggested Use : General indoor enterprise deployment, networks of all sizes, remote worker or micro-office extension, high-density applications
- Region : US
- Radios : 2x, one 2.4GHz and one 5GHz, no dedicated third scanning radio on this model
- Spatial Streams per Radio : 4x streams on 2.4GHz using 4x4, 8x streams on 5GHz using 8x8, for 12x total combined
- Maximum Data Rate : Up to 600 Mbps on 2.4GHz (802.11n), up to 5 Gbps on 5GHz (802.11ax)
- Bluetooth / IoT Radios : Integrated Bluetooth Low Energy 5.0 radio for location tracking and wayfinding use cases
- PoE Standard : 802.3bt (Cisco UPOE/UPOE+) for full functionality with USB enabled, 802.3at reduces to full radio performance but disables USB, 802.3af drops both radios to 2x2 and downgrades link speed to 2.5 Gbps with USB off
- PoE Injector : Not included, optional AIR-PWRINJ6= (802.3at) or AIR-PWRINJ5= (802.3af only) available separately
- Uplink Ports : 1x Multigigabit Ethernet RJ-45, supporting 100/1000/2500/5000
- Other Ports : 1x Management console port RJ-45, 1x USB 2.0 port, up to 4.5W
- Antenna Type : Integrated internal antennas, omnidirectional in azimuth, 2.4GHz at 4dBi peak gain, 5GHz at 6dBi peak gain
- Mounting Options : AIR-AP-BRACKET-1 (flush ceiling gridwork mount, lowest profile) or AIR-AP-BRACKET-2 (universal, better suited for electrical box, NEMA enclosure, or wall mounting)
- Mounts Included : None Included
- Model Number : C9117AXI-EWC-B
- Part Number : C9117AXI-EWC-B
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C9117AXI-EWC-B Int Antenna Access Point w/ Embedded Wireless Controller as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Wall Mount Bracket Not Included
- Power Injector Not Included
