The Cisco C9120AXE-B Catalyst 9120AX WAP is designed for high-performance wireless connectivity in demanding environments. With Wi-Fi 6 technology, this access point supports data rates of up to four spatial streams and features MU-MIMO capabilities for improved efficiency on both the 2.4 GHz and 5.0 GHz bands.
Equipped with external antennas, the C9120AXE-B can be customized to suit your specific coverage needs. This model includes a generous amount of DRAM at 2048 MB, ensuring smooth operation even under heavy network loads.

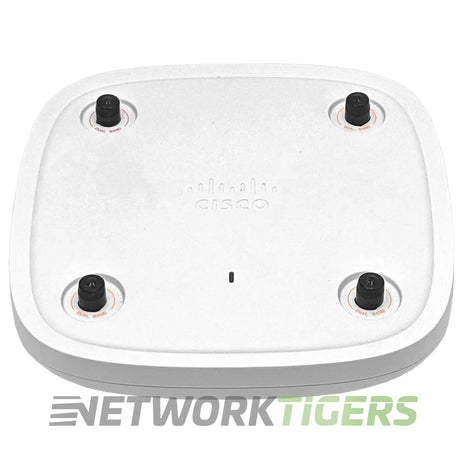

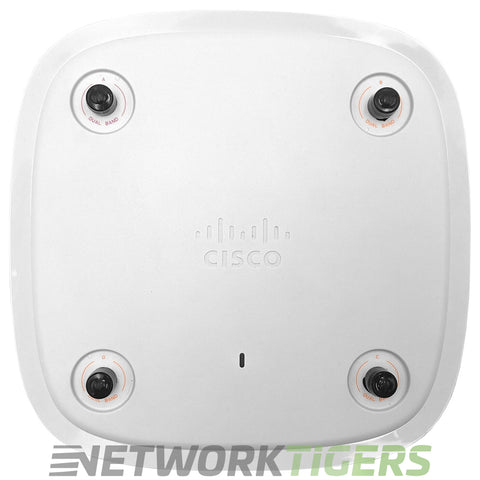

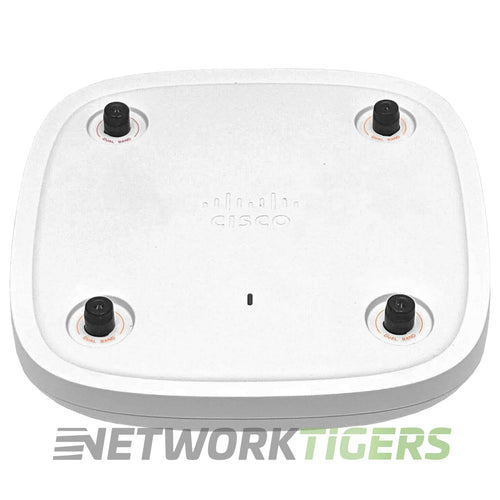

Cisco C9120AXE-B Catalyst 9120AX 802.11ax (Wi-Fi 6) 4x4 MU-MIMO Ext Ant WAP
- Wi-Fi Standard : 802.11ax Wi-Fi 6, also backward compatible with 802.11a/b/g/n/ac
- Managed By : Cisco Catalyst 9800 Series Wireless Controllers, Cisco 3500/5520/8540 Series Wireless Controllers, Cisco Virtual Wireless Controller
- Suggested Use : Indoor challenging environments needing external antenna flexibility, suited for high-density and large open-area deployments such as auditoriums, convention centers, libraries, cafeterias, arenas/stadiums
- Region : US (Region B)
- Radios : Flexible Radio Assignment with two radios, either 2.4 GHz plus 5 GHz mode, or Dual 5 GHz mode for increased capacity, plus integrated Bluetooth Low Energy 5 radio
- Spatial Streams per Radio : 4x4 MIMO with four spatial streams on both radios
- Maximum Data Rate : Up to 5.38 Gbps PHY data rate 160 MHz on 5 GHz plus 20 MHz on 2.4 GHz, up to 5.2 Gbps over-the-air in Dual 5 GHz mode 2 x 2.6 Gbps
- Bluetooth / IoT Radios : Integrated Bluetooth Low Energy 5 radio for location tracking and wayfinding
- PoE Standard : 802.3at PoE+, 802.3bt Cisco UPOE/UPOE+, 802.3af PoE also supported with reduced functionality - PoE Injector sold separately
- Uplink Ports : 1x Multigigabit Ethernet port 100/1000/2500 RJ-45, IEEE 802.3bz, Auto-MDIX support
- Other Ports : Management console port RJ-45, USB 2.0 at 4.5W
- Antenna Type : External, sold separately, certified for antenna gains up to 6 dBi at 2.4 GHz and 5 GHz
- Antenna Options : Broad selection of external antennas available separately, smart antenna connector allows two sets of antennas active simultaneously on a single AP
- Mounts Included : Mounting Hardware is not included
- Model Number : C9120AXE-B
- Part Number : C9120AXE-B
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9120AXE-B Wi-Fi 6 802.11ax Region B External Antenna Indoor WAP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Injector Not Included
- Wall Mount Bracket Not Included
