The NEW Cisco C9120AXP-B Catalyst 9120AX Indoor WiFi 6 access point offers peak gains of 4 dBi at 2.4 GHz and 5 dBi at the higher frequency, providing reliable connectivity on both bands.
This WAP supports MU-MIMO with four spatial streams for efficient downlink transmissions. The integrated antennas ensure simple installation without sacrificing performance quality. Ideal for businesses seeking high-speed wireless connections in indoor settings, this model is designed to deliver consistent results across different frequencies while maximizing network capacity through advanced technology features.

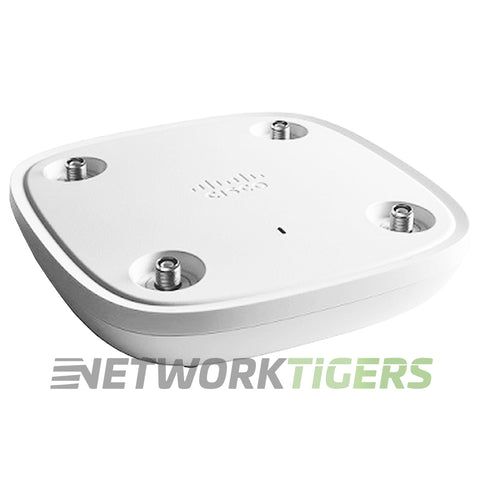

NEW Cisco C9120AXP-B Catalyst 9120AX Indoor 802.11ax (Wi-Fi 6) 4x4 MU-MIMO WAP
- Wi-Fi Standard : 802.11ax Wi-Fi 6, also backward compatible with 802.11a/b/g/n/ac
- Managed By : Cisco Catalyst 9800 Series Wireless Controllers, Cisco 3500/5520/8540 Series Wireless Controllers, Cisco Virtual Wireless Controller, or Cisco DNA Center for analytics and automation
- Suggested Use : Professional installations in indoor high-density and large open-area environments such as auditoriums, convention centers, libraries, cafeterias, arenas/stadiums
- Radios : Flexible Radio Assignment with two radios, either 2.4 GHz plus 5 GHz mode, or Dual 5 GHz mode for increased capacity, plus integrated Bluetooth Low Energy 5 radio
- Spatial Streams per Radio : 4x4 MIMO with four spatial streams on both radios
- Maximum Data Rate : Up to 5.38 Gbps PHY data rate 160 MHz on 5 GHz plus 20 MHz on 2.4 GHz, up to 5.2 Gbps over-the-air in Dual 5 GHz mode 2 x 2.6 Gbps
- Bluetooth / IoT Radios : Integrated Bluetooth Low Energy 5 radio for location tracking and wayfinding
- PoE Standard : 802.3at PoE+, 802.3bt Cisco UPOE/UPOE+, 802.3af PoE also supported with reduced functionality - PoE Injectors not included AIR-PWRINJ6 for 802.3at or AIR-PWRINJ5 for 802.3af
- DC Power Input : N/A - PoE Only
- Uplink Ports : One Multigigabit Ethernet port 100/1000/2500 RJ-45, IEEE 802.3bz, Auto-MDIX support
- Other Ports : Management console port RJ-45, USB 2.0 at 4.5W
- Antenna Type : External, sold separately, certified for antenna gains up to 13 dBi at 2.4 GHz and 5 GHz using the AIR-ANT2513P4M-N antenna
- Antenna Options : Broad selection of external antennas available separately, smart antenna connector allows two sets of antennas active simultaneously on a single AP
- Mounts Included : Not Included
- Model Number : C9120AXP-B
- Part Number : C9120AXP-B, C9120AXP-B=, C9120AXP-B-WS
- Condition : New

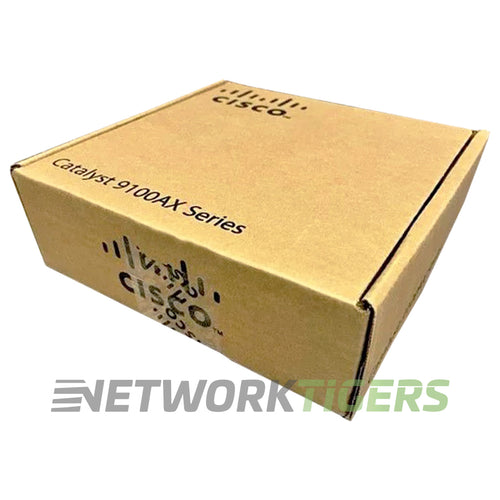

- One (1) NEW Cisco C9120AXP-B Wi-Fi 6 802.11ax External Antenna (Not Included) Indoor WAP as described above
