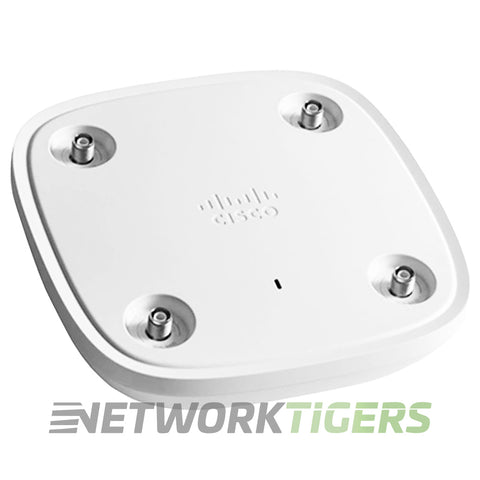

The NEW Cisco C9130AXE-B Indoor 802.11ax (Wi-Fi 6) External Antenna WAP is a high-performance wireless access point designed for indoor use. It operates on both the 2.4 GHz and 5 GHz frequency bands with a maximum data rate of up to 1.5 Gbps.
This access point supports Wi-Fi 6 technology, also known as 802.11ax, which enhances network efficiency and performance compared to previous generations of Wi-Fi standards. It can provide maximum data rates of up to 1.5 Gbps with dual-band capabilities operating at both the commonly used frequencies 2.4 GHz and 5 GHz.
Equipped with four external antenna ports and eight transmit and receive streams (8x8 MU-MIMO), this access point enables improved capacity by serving multiple clients simultaneously.
Its Orthogonal Frequency-Division Multiple Access (OFDMA) capability allows efficient spectrum utilization by dividing each channel into smaller sub-channels called Resource Units that are allocated based on client demands within short intervals—delivering better overall performance even in crowded environments.
NEW Cisco C9130AXE-B Indoor 802.11ax (Wi-Fi 6) 8x8 MU-MIMO OFDMA Ext Ant WAP
- Wi-Fi Standard : IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
- Managed By : Wireless LAN controllers (Catalyst 9800 Series, or legacy 3504/5520/8540 and virtual controller)
- Licensing : Mandatory subscription-based licensing required
- Suggested Use : High-density and large open-area environments, auditoriums, convention centers, libraries, cafeterias, arenas and stadiums, also suited to industrial applications requiring operation in higher temperatures
- Region : US (Region B)
- Radios : 2x by default, dual-radio mode with one 8x8 5GHz and one 4x4 2.4GHz, software-splittable into dual 4x4 5GHz mode for macro/macro cell coverage
- Spatial Streams per Radio : 8x streams on 5GHz, or dual 4x4 in split mode, plus 4x streams on 2.4GHz, for 12x total combined in default mode
- Maximum Data Rate : Up to 10 Gbps combined, 160MHz on 5GHz and 20MHz on 2.4GHz
- Bluetooth / IoT Radios : Integrated Bluetooth Low Energy 5 radio for location-based use cases like asset tracking and wayfinding
- PoE Standard : 802.3af sufficient for reduced 1x1/1x1 operation at 1G link speed, 802.3at PoE+ required for 4x4/8x8 or dual 4x4/4x4 operation at 5G link speed, 802.3bt Cisco UPOE needed for full 4x4/8x8 operation with USB simultaneously enabled
- PoE Injector : Not included, optional AIR-PWRINJ6= (802.3at) or AIR-PWRINJ5= (802.3af only) available separately
- Uplink Ports : 1x Multigigabit Ethernet RJ-45, supporting 100/1000/2500/5000
- Other Ports : 1x Management console port RJ-45, 1x USB 2.0 at 4.5W, enabled via future software
- Antenna Type : External, connectorized, no internal antennas, requires a suitable antenna system before operation
- Antenna Ports : Smart antenna connector, a compact multi-RF connector with 8-DART interface, supports Self-Identifiable Antennas, requires AIR-CAB002-D8-R= adapter cable for antennas with RP-TNC connectors, or AIR-CAB003-D8-N= for the AIR-ANT2513P4M-N= specifically
- Mounting Options : AIR-AP-BRACKET-1, flush ceiling, lowest profile. AIR-AP-BRACKET-2, universal, electrical box, NEMA enclosure, or wall. AIR-AP-BRACKET-9=, mounts AP to back of C-ANT9103 antenna.
- Mounts Included : None Included
- Model Number : C9130AXE-B
- Part Number : C9130AXE-B, C9130AXE-B=, C9130AXE-B-WS
- Condition : New
- One (1) NEW Cisco C9130AXE-B Wi-Fi 6 802.11ax US External Antenna Indoor Wireless AP as described above
