NEW Cisco C9200-24P-A 24x 1GB PoE+ RJ45 1x Module Slot Switch

NEW Cisco C9200-24P-A 24x 1GB PoE+ RJ45 1x Module Slot Switch

$ 3,191.99
7 in stock
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New

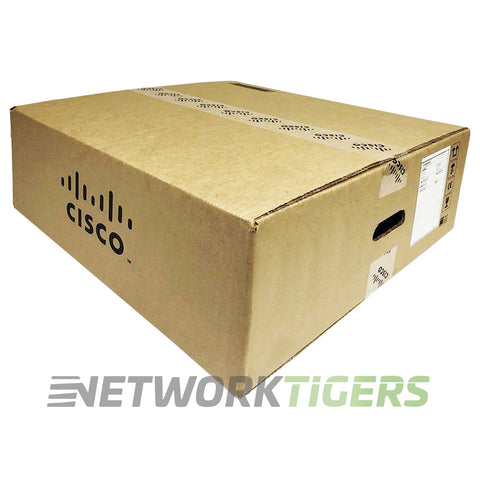

New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3645
UPC: 889728168304

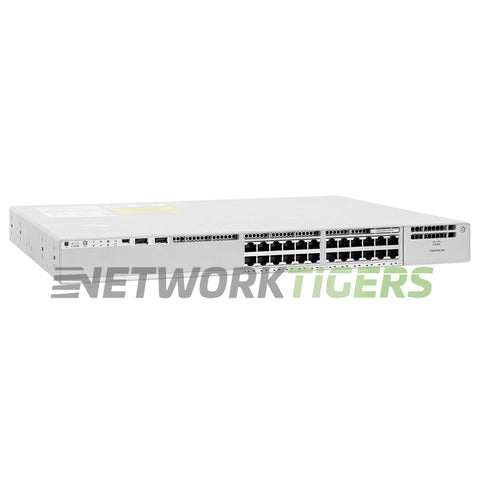

The Cisco C9200-24P-A is a high-performance switch for small to medium-sized networks. With 24 PoE+ RJ45 ports and one module slot, this switch offers flexibility regarding connectivity options.

One notable feature of the C9200-24P-A is its Power over Ethernet (PoE) capability, providing power and network connectivity to devices such as IP cameras or wireless access points through a single cable. The switch has a total PoE budget of 370W with one power supply unit (PSU), which can be doubled to 740W with two PSUs.

The C9200-24P-A boasts a switching capacity of up to 128 Gbps when used standalone or an impressive 288 Gbps when stacked with other compatible switches. It also delivers fast forwarding rates at approximately 190.4 Mpps individually or up to 175 Mpps during stacking sessions

C9200-24P-A Catalyst 9200 24-port PoE+ Switch, Network Advantage


  • Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ45
  • SMARTnet : If you are planning to put this under SMARTnet, please ask before purchasing. We cannot guarantee that the unit will be SMARTnet eligible unless checked prior to purchase.
  • Management Ports : 1x RJ45 Console, 1x Gigabit Management, 2x USB, 1x Mini USB
  • Stacking Ports : StackWise-160 possible through the use of C9200-STACK-KIT - Ordered Separately - Stacking Bandwidth = 160 Gbps | This switch cannot be stacked with fixed C9200 models or other Catalyst switches.
  • Module Slots and Options : 1x Expansion Module Slot - Module not Included | Expansion Module Options are C9200-NM-4G (4x 1GB SFP) , C9200-NM-4X (4x 1G/10G SFP), C9200-NM-BLANK - None Included - Ordered Separately
  • Stacking Cable Options : STACK-T4-50CM (Default with C9200-STACK-KIT), STACK-T4-1M, STACK-T4-3M
  • Fan Modules AirFlow Direction : 2x C9200-FAN Fan Modules Included
  • Power Supplies Included : 1x PWR-C5-600WAC Power Supplies Included - 2x Slots - 2nd Power Supply ordered separately - Options are - PWR-C5-125WAC, PWR-C5-600WAC, PWR-C5-1KWAC, PWR-C5-BLANK
  • PoE Budget : 370W (with 1x PSU), 740W (with 2x PSU)
  • Switching Capacity : 128 Gbps (288 Gbps with Stacking)
  • Forwarding Rate : 190.4 Mpps (214 Mpps with Stacking)
  • MAC Address Table Size : 32,000
  • Rack Mounts : Included (1-RU)
  • SD Access Support : Yes (4 Virtual Networks)
  • Model Number : C9200-24P-A
  • Part Number : C9200-24P-A, C9200-24P-A=, C9200-24P-A-WS
  • Condition : New


  • One (1) NEW Cisco C9200-24P-A 24x 1GB PoE+ RJ45 1x Module Slot Switch as described above
