The Cisco C9200-48PL-A switch provides 48x 1GB ports with Partial PoE+ support and one expansion module slot. With a switching capacity of 176 Gbps or up to 336 Gbps when stacked, this model ensures strong throughput capabilities.
The forwarding rate reaches 130.95 Mpps independently and scales to a maximum of 250 Mpps in stacking configurations for heavy traffic demands. Its MAC address table supports storage for up to 32,000 entries, meeting robust networking needs effectively.

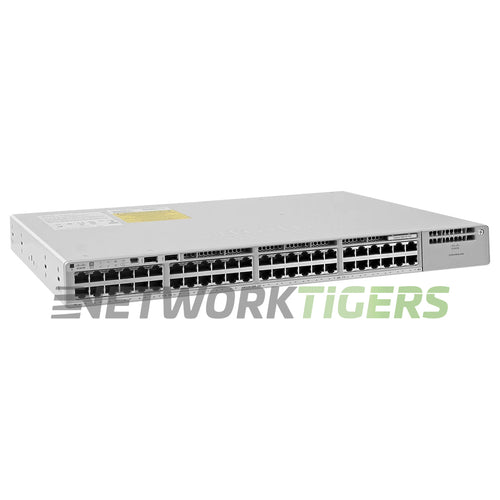

Cisco C9200-48PL-A 48x 1GB Partial PoE+ RJ45 1x Expansion Module Slot Switch
- Network Ports : 48x 1 Gigabit Ethernet Partial PoE+ RJ45
- SMARTnet : If you are planning to put this under SMARTnet, please ask before purchasing. We cannot guarantee that the unit will be SMARTnet eligible unless checked prior to purchase.
- Management Ports : 1x RJ45 Console, 1x 1 Gigabit Management, 2x USB, 1x Mini USB
- Stacking Ports : StackWise-160 possible through the use of C9200-STACK-KIT - Ordered Separately
- Stacking Options : Stacking Bandwidth = 160 Gbps - This switch cannot be stacked with fixed C9200 models or other Catalyst switches.
- Stacking Cable Options : STACK-T4-50CM (Default with C9200-STACK-KIT), STACK-T4-1M, STACK-T4-3M - Not Included
- Module Slots : 1x Expansion Module Slot - Module not Included
- Module Options : C9200-NM-4G (4x 1GB SFP) , C9200-NM-4X (4x 1G/10G SFP), C9200-NM-BLANK - None Included - Ordered Separately
- Switch Version : Network Advantage
- AirFlow Direction : Front-to-Back Airflow (Standard)
- Fan Module Options : 2x C9200-FAN Fan Modules Included
- Power Supplies Included : 1x PWR-C6-1KWAC Included - 2x Slots - 2nd Power Supply ordered separately
- Power Supply Options : PWR-C6-1KWAC, PWR-C6-715WDC, PWR-C5-BLANK
- PoE Budget : 370W
- Switching Capacity : 176 Gbps, 336 Gbps w/ Stacking
- Forwarding Rate : 130.95 Mpps, 250 Mpps w/ Stacking
- MAC Address Table Size : 32,000
- VLAN ID's : 4096
- Virtual Networks : 4
- Model Number : C9200-48PL-A
- Part Number : C9200-48PL-A
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C9200-48PL-A 48x 1GB Partial PoE+ RJ45 1x Expansion Module Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Two (2) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
