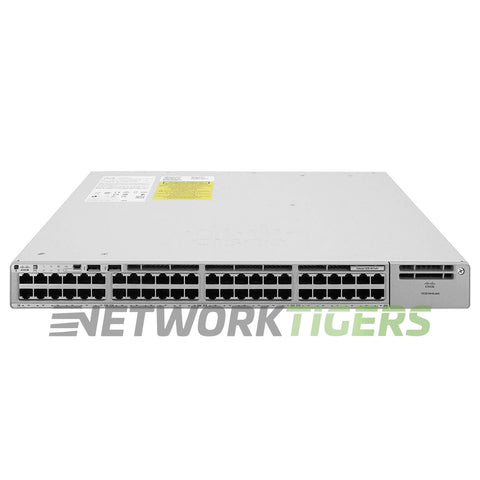

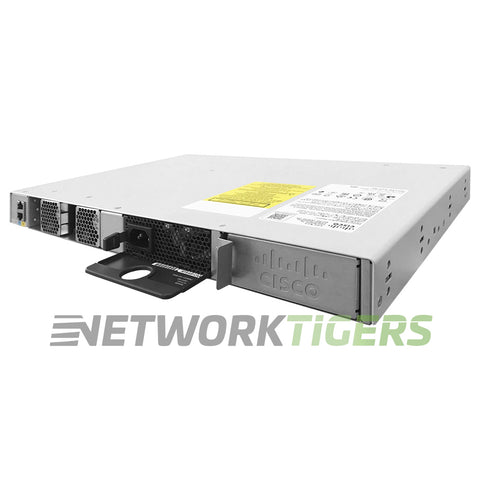

The NEW Cisco C9200-48PXG-A switch is part of the Catalyst 9200 Series with a PoE budget of 740W (1440W with secondary PSU). It features 40x 1GB PoE+ RJ45 ports, 8x MultiGB PoE+ RJ45 ports, and a modular slot.
With switching capacity at up to 400 Gbps (580 Gbps w/ stacking) and forwarding rate at up to Mpps, this switch offers high performance for network traffic. The MAC address table size can store up to 32,000 addresses while delivering low latency.
This makes it an efficient choice for businesses looking for reliable connectivity solutions that seamlessly handle demanding workloads within their networks.
NEW Cisco C9200-48PXG-A 40x 1GB PoE+ RJ45 8x MultiGB PoE+ RJ45 1x ModSlot Switch
- Network Ports : 40x 1 Gigabit Ethernet PoE+ RJ45, 8x Multi Gigabit Ethernet PoE+ RJ45
- SMARTnet : If you are planning to put this under SMARTnet, please ask before purchasing. We cannot guarantee that the unit will be SMARTnet eligible unless checked prior to purchase.
- Management Ports : 1x RJ45 Console, 1x 1 Gigabit Management, 2x USB, 1x Mini USB
- Stacking Ports : StackWise-160 possible through the use of C9200-STACK-KIT - Ordered Separately
- Stacking Options : Stacking Bandwidth = 160 Gbps | This switch cannot be stacked with fixed C9200 models or other Catalyst switches.
- Stacking Cable Options : STACK-T4-50CM (Default with C9200-STACK-KIT), STACK-T4-1M, STACK-T4-3M - Not Included
- Module Slots : 1x Expansion Module Slot - Module not Included
- Module Options : C9200-NM-2Y (2x 25G), C9200-NM-2Q (2x 40GB QSFP), C9200-NM-4X (4x 1G/10G SFP), C9200-NM-BLANK - None Included - Ordered Separately
- Switch Version : Network Advantage
- AirFlow Direction : Front-to-Back Airflow (Standard)
- Fan Module Options : 2x C9200-FAN Fan Modules Included
- Power Supplies Included : 1x PWR-C6-1KWAC Included - 2x Slots - 2nd Power Supply ordered separately
- Power Supply Options : PWR-C6-1KWAC, PWR-C6-715WDC, PWR-C5-BLANK
- PoE Budget : 740W (w/ Single Primary PSU), 1440W (w/ Secondary PSU)
- Switching Capacity : 400 Gbps (580 Gbps w/ Stacking)
- Forwarding Rate : 297.61 Mpps (431 Mpps w/ Stacking)
- MAC Address Table Size : 32,000
- VLAN ID's : 4096
- DRAM and Flash : DRAM = 4 GB, Flash = 4 GB
- Model Number : C9200-48PXG-A
- Part Number : C9200-48PXG-A
- Condition : New
- One (1) NEW Cisco C9200-48PXG-A 40x 1GB PoE+ RJ45 8x MultiGB PoE+ RJ45 1x ModSlot Switch as described above
