NEW Cisco C9200L-24P-4G-A 24x 1GB PoE+ RJ45 4x 1GB SFP Switch
New

NEW Cisco C9200L-24P-4G-A 24x 1GB PoE+ RJ45 4x 1GB SFP Switch

$ 3,984.99
$ 3,444.99
9 in stock
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3648
UPC: 889728170284

Overview

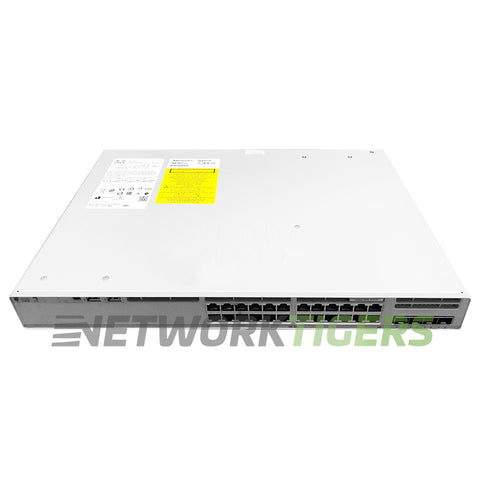

The Cisco C9200L-24P-4G-A switch is a powerful and efficient networking solution with 24 PoE+ RJ45 ports that deliver Gigabit speeds. It also features 4 SFP uplink ports, providing flexibility for connecting to other devices.

With a PoE budget of either 370W (with one PSU) or an impressive 740W (with two PSUs), this switch can power various networked devices such as IP phones, access points, and cameras without the need for additional power sources.

This versatile switch offers excellent performance capabilities with a switching capacity of 56 Gbps (which expands to an impressive 136 Gbps when stacked). It boasts a forwarding rate of up to Mpps, ensuring fast data processing across your network. The MAC Address Table Size supports up to 16,000 entries, allowing you room for expansion while maintaining optimal functionality.

Cisco C9200L-24P-4G-A: Catalyst 9200L 24x 1Gb RJ45 PoE+ ports, 4x1G SFP uplink ports.


Specifications

  • Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ45
  • Uplink Ports : 4x 1 Gigabit Ethernet SFP (Fixed)
  • Management Ports : 1x RJ45 Console, 1x 1 Gigabit Management, 2x USB, 1x Mini USB
  • Stacking Ports : StackWise-80 possible through the use of C9200L-STACK-KIT - Ordered Separately - Stacking Bandwidth = 80 Gbps | This switch cannot be stacked with modular uplink C9200 models or other Catalyst switches.
  • Stacking Cable Options : STACK-T4-50CM (Default with C9200-STACK-KIT), STACK-T4-1M, STACK-T4-3M
  • Fan Modules AirFlow Direction : 2x C9200-FAN Fan Modules Included
  • Power Supplies Included : 1x PWR-C5-600WAC Included - 2x Slots - 2nd Power Supply ordered separately - Options are - PWR-C5-600WAC, PWR-C5-BLANK
  • PoE Budget : 370W (1x PSU), 740W (2x PSU's)
  • Switching Capacity : 56 Gbps (136 Gbps with Stacking)
  • Forwarding Rate : 41.66 Mpps
  • MAC Address Table Size : 16,000
  • Virtual Networks : 1
  • Rack Mounts : Included (1-RU)
  • Model Number : C9200L-24P-4G-A
  • Part Number : C9200L-24P-4G-A, C9200L-24P-4G-A=, C9200L-24P-4G-A-WS
  • Condition : New


Included

  • One (1) NEW Cisco C9200L-24P-4G-A 24x 1GB PoE+ RJ45 4x 1GB SFP Switch as described above
