The NEW Cisco C9300-24UXB-E is a powerful switch designed to meet the demands of modern network infrastructures. With 24 multi-gigabit UPOE RJ45 ports and a module slot, this switch provides high-speed connectivity for devices such as IP phones, cameras, and access points.
One standout feature of this switch is its PoE budget. The default PSU offers an impressive 560W power supply capability (910W with a second PSU), allowing it to power multiple connected devices efficiently.
The C9300-24UXB-E offers a switching capacity of 640 Gbps (1120 Gbps with stacking) and can handle forwarding rates up to 476.19 Mpps (833.33 Mpps with stacking). This ensures smooth data transfer even in bandwidth-intensive environments.
With MAC Address Table Size support for up to 32,000 entries, managing large networks becomes more accessible than ever before.

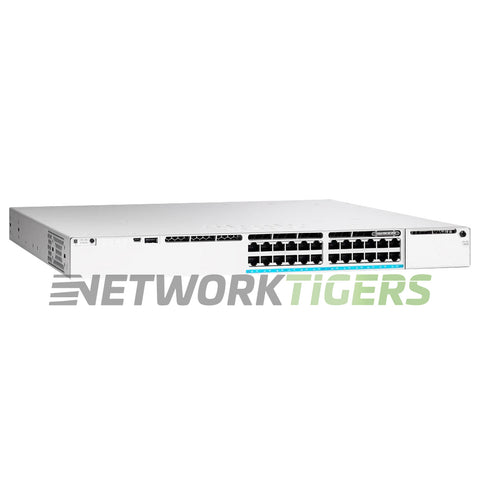

NEW Cisco C9300-24UXB-E 9300 24x MultiGB UPOE RJ45 1x Module Slot Switch
- Network Ports : 24x MultiGigabit Ethernet UPOE RJ45
- Management Ports : 1x Management Console RJ45, 1x Management Console RJ45, 1x USB 3.0 SSD
- Stacking Ports : 2x StackWise 480 ports, 2x StackPower connection ports
- Stacking Cable Options : STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise 480), CAB-SPWR-30CM, CAB-SPWR-150CM (Stack Power) - Not Included
- Module Slots : 1x Expansion Module Slot - Module not Included - Ordered Separately
- Module Options : C9300-NM-4G (4x 1GB SFP) , C9300-NM-8X (8x 10GB SFP+), C9300-NM-2Q (2x 40GB QSFP), C9300-NM-2Y (2x 25GB SFP28), C9300-NM-4M (4x MultiGB RJ45)
- Switch Version : Network Essentials
- Fan Module Options : 3x FAN-T2 Field Replaceable Fan Modules Included
- Power Supplies Included : 1x PWR-C1-1100WAC 1100W AC Included - 2x Total PSU Slots
- Power Supply Options : PWR-C1-350WAC, PWR-C1-715WAC, PWR-C1-1100WAC - Not Included
- PoE Budget : 560W - Default PSU - (910W w/ 350W 2nd PSU, 1275W w/ 715W 2nd PSU, 1440W w/ 1100W 2nd PSU)
- Switching Capacity : 640 Gbps (1120 Gbps with Stacking)
- Forwarding Rate : 476.19 Mpps (833.33 Mpps with Stacking)
- MAC Address Table Size : 32,000
- Model Number : C9300-24UXB-E
- Part Number : C9300-24UXB-E, C9300-24UXB-E=, C9300-24UXB-E-WS
- Condition : New
- One (1) New Cisco C9300-24UXB-E Catalyst 9300 Series 24x MultiGigabit UPOE RJ45 1x Expansion Module Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
