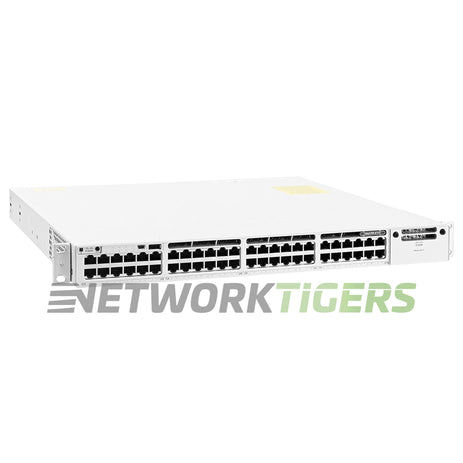

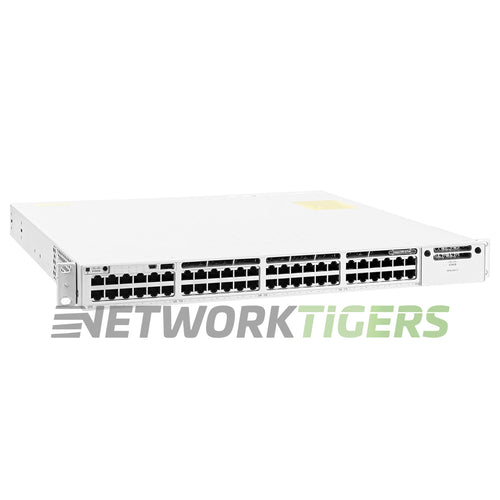

Powering up to 48 phones, access points, and cameras over Gigabit PoE+ ports, the seller refurbished Cisco Catalyst C9300-48P-E (Network Essentials version) is an access switch with a module slot for uplinks and eight-switch stacking.
- Budget from 437W to 822W: The default 715W supply provides 437W of PoE. An 1100W supply raises that to 822W, and 48 ports at 15.4W (about 739W) fit inside it.
- Slot in the right module: Slot in a C9300-NM-4M (4x Multigigabit), C9300-NM-2Y (2x 25G/10G/1G), C9300-NM-4G (4x 1G), C9300-NM-2Q (2x 40G), or C9300-NM-8X (8x 10G/1G) module, or a Catalyst 3850 module.
- Eight-switch stack, shared power: Stack up to eight switches over 480 Gbps cables, with StackPower pooling supplies across up to four of them, or eight with an XPS-2200.
- Fans and a second bay: Two supply bays let you add a second supply for redundancy, and the three N+1 fans (FAN-T2) are field-replaceable.
Compare: Need fewer ports? The C9300-24P-E has 24 PoE+ ports. Want fixed 1G uplinks with no module? The C9300L-48P-4G-E has four 1G SFP uplinks.
What ships with this unit is listed under What's Included. See all Cisco Catalyst 9300 switches and parts.
Every unit is tested before it ships and is covered by our 365-day warranty. Need several, or a matched set with power supplies and fans? Ask us for a quote.
- Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ45
- Product Family : Catalyst 9300 Series
- Management Ports : 1x RJ45 Console, 1x RJ45 Management, 1x USB Type B, 1x USB Type A
- Stacking Ports : 2x StackWise 480 ports, 2x StackPower connection ports
- Stacking Cable Options : STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise 480), CAB-SPWR-30CM, CAB-SPWR-150CM (Stack Power) - Cables sold separately
- Module Slots : 1x Expansion Module Slot - Module not Included - Ordered Separately
- Module Options : C9300-NM-4G (4x 1GB SFP) , C9300-NM-8X (8x 10GB SFP+), C9300-NM-2Q (2x 40GB QSFP), C9300-NM-2Y (2x 25GB SFP28), C9300-NM-4M (4x MultiGB RJ45)
- Switch Version : Network Essentials
- Fan Module Options : 3x FAN-T2 Field Replaceable Fans Included
- Power Supplies Included : 1x PWR-C1-715WAC (715W AC) included - 2x Slots
- Power Supply Options : PWR-C1-715WAC or PWR-C1-1100WAC or PWR-C1-350WAC
- PoE Budget : 437W with default PSU - 787W (with 350W Secondary PS), 1152W (with 715W Secondary PS), 1440W (with 1100W Secondary PS)
- Switching Capacity : 256 Gbps (736 Gbps with Stacking)
- Forwarding Rate : 190.48 Mpps (547.62 Mpps with Stacking)
- MAC Address Table Size : 32,000
- Model Number : C9300-48P-E
- Part Number : C9300-48P-E, C9300-48P-E=, C9300-48P-E-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9300-48P-E Catalyst 9300 48x 1GB PoE+ RJ45 1x Module Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
