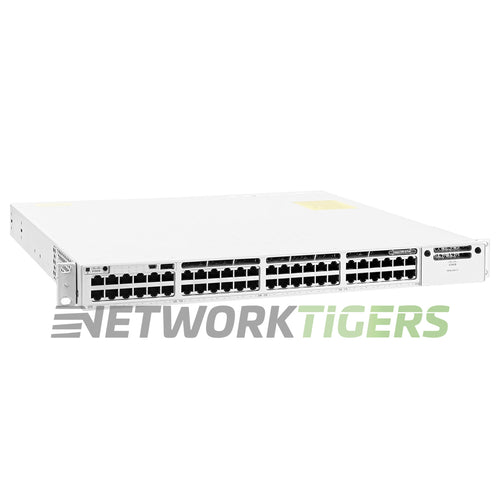

The Cisco Meraki C9300-48P-M switch offers 48x 1GB PoE+ RJ-45 ports, along with a single module slot that can accommodate various expansion modules (not included).
The available module options include the C9300-NM-4G-M, C9300-NM-8X-M, C9300-NM-2Q-M, C9300-NM—4N/M and theC920-Pro. With a switching capacity of up to 256 Gbps (736 Gbps with stacking), this switch provides high-performance data transfer capabilities. It also boasts a forwarding rate of 190.48 Mpps (547.62 Mpps with stacking) and supports MAC address tables sizes up to 32,000 entries.
Cisco C9300-48P-M: Catalyst 9300-M 48x 1Gb RJ45 PoE+ ports.
- Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ-45
- Product Family : Meraki Catalyst 9300-M Series
- Management Ports : Managed via Cisco Meraki Dashboard
- Stacking Ports : 2x StackWise 480 ports, 2x StackPower connection ports
- Stack Members : Up to eight switches can be connected in the stack | Supported stack members = Other C9300 SKUs with same license level - C9300 higher scale SKUs only stack with other like higher scale models
- Stacking Cable Options : Stackwise - STACK-T1-50CM-M, STACK-T1-1M-M, STACK-T1-3M-M | StackPower - CAB-SPWR-30CM-M, CAB-SPWR-150CM-M
- Module Slots : 1x Expansion Module Slot - Module not Included
- Module Options : C9300-NM-4G-M, C9300-NM-8X-M, C9300-NM-2Q-M, C9300-NM-4M-M, C9300-NM-2Y-M
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 3x FAN-T2-M Field Replaceable Fan Modules Included
- Power Supplies Included : 1x PWR-C1-715WACP-M Power Supply included - 2x Slots
- Power Supply Options : PWR-C1-715WAC-P-M, PWR-C1-350WAC-P-M, PWR-C1-1100WAC-P-M
- PoE Budget : 437W with default PSU - 787W (with 350W Secondary PS), 1152W (with 715W Secondary PS), 1440W (with 1100W Secondary PS)
- Switching Capacity : 256 Gbps (736 Gbps with Stacking)
- Forwarding Rate : 190.48 Mpps (547.62 Mpps with Stacking)
- MAC Address Table Size : 32,000
- Model Number : C9300-48P-M
- Part Number : C9300-48P-M
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco Meraki C9300-48P-M 48x 1GB PoE+ RJ-45 1x Module Slot Unclaimed Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
