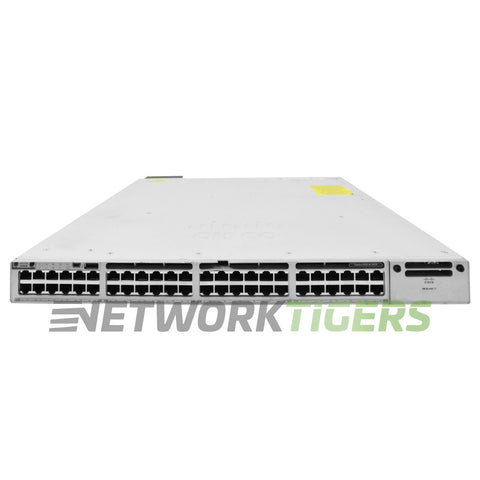

NEW Cisco C9300-48U-E 48x 1GB UPoE RJ-45 1x Module Slot Switch
New

NEW Cisco C9300-48U-E 48x 1GB UPoE RJ-45 1x Module Slot Switch

$ 1,704.99
Only 1 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-1854
UPC: 889728035729

Overview

The Cisco C9300-48U-E switch offers 48 UPoE RJ-45 ports with a PoE budget ranging from 822W to 1800W based on power supply configurations. It features a module slot for additional expansion, providing flexibility as your network grows.

With a switching capacity of up to 256 Gbps (736 Gbps with stacking) and a forwarding rate of up to 190.5 Mpps (547.62 Mpps with stacking), this switch can handle high traffic loads efficiently. The MAC address table size of 32,000 allows ample device connectivity without compromising performance or security measures.

With the inclusion of PoE functionality offering a total budgeted power range between 1172 and 1800W depending on which additional/secondary PSUs are added, this device enables powering devices like wireless access points, cameras, or VoIP phones via Ethernet cables using PoE technology.

Cisco C9300-48U-E: Catalyst 9300 48x 1Gb RJ45 UPOE (Universal PoE) ports.


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet UPoE RJ-45
  • Management Ports : 1x Management Console - RJ-45, 1x Management Console RJ-45, 1x USB 3.0 SSD
  • Stacking Ports : 2x StackWise 480 ports, 2x StackPower connection ports - Cables sold separately - Cable Options are STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise 480), CAB-SPWR-30CM, CAB-SPWR-150CM (Stack Power)
  • Module Slots and Options : 1x Expansion Module Slot - None Included - Sold separately
  • Expansion Module Options : C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q - Please note - Existing 3850 network modules are also supported in the Cisco Catalyst 9300 Series platforms.
  • Fan Modules AirFlow Direction : 3x FAN-T2 Field Replaceable Fans Included
  • Power Supplies Included : 1x PWR-C1-1100WAC Included - 2x PSU Slots - Options for 2nd PSU are - PWR-C1-350WAC, PWR-C1-715WAC or PWR-C1-1100WAC
  • PoE Budget : 822W (w/ Default PSU), 1172W (w/ 350W 2nd PSU), 1537W (w/ 715W 2nd PSU), 1800W (w/ 1100W 2nd PSU)
  • Switching Capacity : 256 Gbps (736 Gbps with Stacking)
  • Forwarding Rate : 190.48 Mpps (547.62 Mpps with Stacking)
  • MAC Address Table Size : 32,000
  • Rack Mounts : Included (1-RU)
  • DRAM : 8GB
  • Model Number : C9300-48U-E
  • Part Number : C9300-48U-E, C9300-48U-E=, C9300-48U-E-WS
  • Condition : New


Included

  • One (1) New Cisco C9300-48U-E Catalyst 9300 Series 48x 1 Gigabit UPoE RJ-45 1x Expansion Module Slot Switch as described above
