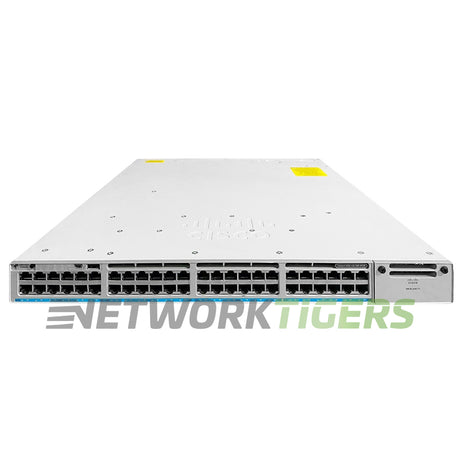

The Cisco C9300-48UB-A Catalyst 9300 is a powerful switch that offers high performance and flexibility. It features 48x 1GB UPoE RJ45 ports, allowing fast and reliable connectivity. The switch can be customized to meet specific networking needs with its expandable module slot.
This switch has multiple configurations available with different PoE budgets: 822W (with default PSU), 1172W (with optional second PSU of 350W), or even higher capacities up to the maximum of 1800W (with an additional11000 Watt power supply unit). This ensures sufficient power delivery for connected network devices.
With a switching capacity of 256 Gbps (736Gbps through stacking)and a forwarding rate of 190.48 Mpps (547.62Mpps via stacking), this switch facilitates seamless data transfer while efficiently handling network traffic demands.
The MAC address table size supports up to 32k entries, enabling efficient management and identification within large networks.
Cisco C9300-48UB-A: Catalyst 9300 48x 1Gb RJ45 UPOE ports, Network Advantage.
- Network Ports : 48x 1 Gigabit Ethernet UPoE+ RJ45
- Management Ports : 1x RJ45, 1x USB 2.0, 1x Mini USB
- Stacking Ports : 2x StackWise 480 ports, 2x StackPower connection ports
- Stacking Cable Options : STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise 480), CAB-SPWR-30CM, CAB-SPWR-150CM (Stack Power) - Cables sold separately
- Module Slots : 1x Expansion Module Slot - None Included - Sold separately
- Module Options : C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q - Please note - Existing 3850 network modules are also supported in the Cisco Catalyst 9300 Series platforms.
- Switch Version : Network Advantage
- Fan Module Options : 3x FAN-T2 Field Replaceable Fan Modules
- Power Supplies Included : 1x PWR-C1-1100WAC Included - 2x PSU Slots
- Power Supply Options : PWR-C1-350WAC, PWR-C1-715WAC or PWR-C1-1100WAC
- PoE Budget : 822W (w/ Default PSU), 1172W (w/ 350W 2nd PSU), 1537W (w/ 715W 2nd PSU), 1800W (w/ 1100W 2nd PSU)
- Switching Capacity : 256 Gbps (736 Gbps with Stacking)
- Forwarding Rate : 190.48 Mpps (547.62 Mpps with Stacking)
- MAC Address Table Size : 32,000
- Model Number : C9300-48UB-A
- Part Number : C9300-48UB-A, C9300-48UB-A=, C9300-48UB-A-WS
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C9300-48UB-A Catalyst 9300 48x 1GB UPoE RJ45 1x Exp Module Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
