The Cisco C9300-48UN-A is a high-performance switch that offers 48 RJ45 ports with UPoE support, providing power and network connectivity to devices. With a PoE budget of 645W (which can be increased up to 1745W), this switch can handle demanding corporate environments that would require data and PoE.
Featuring a module slot, the C9300-48UN-A allows additional expansion and flexibility in networking setups. The switching capacity of this model is an impressive 640 Gbps but can be scaled up to 1120 Gbps when stacked together with other switches.
With a forwarding rate of approximately 476 Mpps (or higher at stacking configurations), this switch enables fast packet processing, ensuring smooth communication between connected devices.
Another notable feature includes its MAC address table size, supporting up to 32,000 entries, making it ideal for large-scale deployments where multiple devices need seamless integration into the network infrastructure.

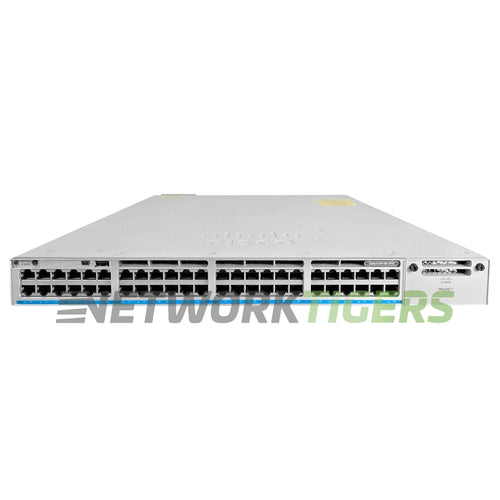

Cisco C9300-48UN-A: Catalyst 9300 48x 5Gb RJ45 UPOE ports.
- Network Ports : 48x 5 Gigabit Ethernet UPOE RJ45
- Management Ports : 1x Management Console RJ45, 1x Management Console RJ45, 1x USB 3.0 SSD
- Stacking Ports : 2x StackWise 480 ports, 2x StackPower connection ports - Cables sold separately
- Stacking Cable Options : STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise 480), CAB-SPWR-30CM, CAB-SPWR-150CM (Stack Power)
- Module Slots : 1x Expansion Module Slot - None Included - Sold separately
- Module Options : C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q - Please note - Existing 3850 network modules are also supported in the Cisco Catalyst 9300 Series platforms.
- Switch Version : Network Advantage
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 3x FAN-T2 Field Replaceable Fans
- Power Supplies Included : 1x PWR-C1-1100WAC Included - 2x PSU Slots - Options for 2nd PSU are - PWR-C1-350WAC, PWR-C1-715WAC or PWR-C1-1100WAC
- Power Supply Options : 645W (w/ Default PSU), 995W (w/ 350W Seconday PSU), 1360W (w/ 715W Secondary PSU), 1745W (w/ 1100W Secondary PSU)
- Switching Capacity : 640 Gbps (1120 Gbps w/ Stacking)
- Forwarding Rate : 476.19 Mpps (833.33 Mpps w/ Stacking)
- MAC Address Table Size : 32,000
- Model Number : C9300-48UN-A
- Part Number : C9300-48UN-A, C9300-48UN-A=, C9300-48UN-A-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9300-48UN-A Catalyst 9300 Series 48x 5 Gigabit UPoE RJ45 1x Expansion Module Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
