The Cisco C9300-48UN-E is a powerful and versatile switch designed to meet the demands of modern networks. This switch offers high-speed device connectivity with 48x 5GB UPoE RJ45 ports. The PoE budget ranges from 645W with the default PSU to an impressive 1745W when paired with the optional secondary PSUs.
This switch boasts a switching capacity of up to 640 Gbps (or up to staggering1120 Gbps with stacking), ensuring smooth and efficient data transmission throughout your network. It supports a forwarding rate of up to 476.19 Mpps (or 833.33 Mpps w/ Stacking) for optimal performance.
With its MAC address table size reaching 32,000 entries, this device can handle large-scale deployments without reducing efficiency or reliability.

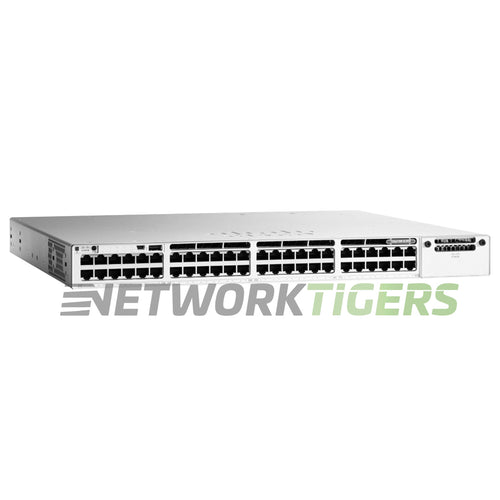

Cisco C9300-48UN-E: Catalyst 9300 48x 5Gb RJ45 UPOE ports.
- Network Ports : 48x 5 Gigabit Ethernet UPOE RJ-45
- Management Ports : 1x Management Console RJ-45, 1x Management Console RJ-45, 1x USB 3.0 SSD
- Stacking Ports : 2x StackWise 480 ports, 2x StackPower connection ports
- Stacking Cable Options : STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise 480), CAB-SPWR-30CM, CAB-SPWR-150CM (Stack Power) - Cables sold separately
- Module Slots : 1x Expansion Module Slot - None Included - Sold separately
- Module Options : C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q - Please note - Existing 3850 network modules are also supported in the Cisco Catalyst 9300 Series platforms.
- Switch Version : Network Essentials
- Fan Module Options : 3x FAN-T2 Field Replaceable Fans
- Power Supplies Included : 1x PWR-C1-1100WAC Included - 2x PSU Slots - Options for 2nd PSU are - PWR-C1-350WAC, PWR-C1-715WAC or PWR-C1-1100WAC
- PoE Budget : 645W (w/ Default PSU), 995W (w/ 350W Seconday PSU), 1360W (w/ 715W Secondary PSU), 1745W (w/ 1100W Secondary PSU)
- Switching Capacity : 640 Gbps (1120 Gbps w/ Stacking)
- Forwarding Rate : 476.19 Mpps (833.33 Mpps w/ Stacking)
- MAC Address Table Size : 32,000
- Model Number : C9300-48UN-E
- Part Number : C9300-48UN-E, C9300-48UN-E=, C9300-48UN-E-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9300-48UN-E Catalyst 9300 Series 48x 5 Gigabit UPoE RJ-45 1x Expansion Module Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
