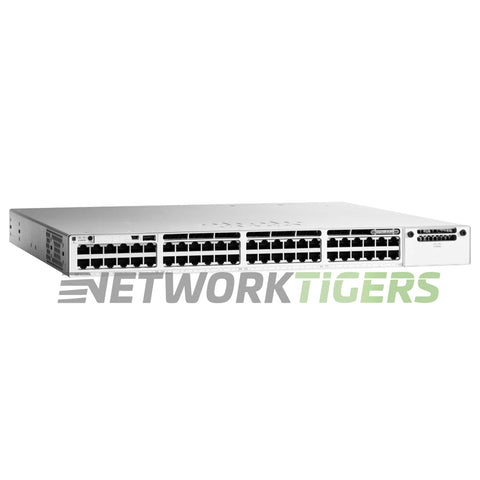

NEW Cisco C9300-48UN-E 48x 5GB UPoE RJ-45 1x Module Slot NE Switch
New

NEW Cisco C9300-48UN-E 48x 5GB UPoE RJ-45 1x Module Slot NE Switch

$ 3,365.99
Only 1 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3612
UPC: 889728035767

Overview

The NEW Cisco C9300-48UN-E switch offers 48x 5GB UPoE RJ-45 ports and a single module slot for additional expandability. Module options include the C9300-NM-4G, C9300-NM-8X, and C9300-NM2Q modules.

With support for existing 3850 network modules, this switch also provides versatility in networking setups. Switching capacity is rated at an impressive 640 Gbps (1120 Gbps with stacking), while the forwarding rate reaches up to 476.19 Mpps (833.33 Mpps with stacking). The MAC Address Table Size can accommodate up to 32,000 addresses.

NEW Cisco C9300-48UN-E 48x 5GB UPoE RJ-45 1x Module Slot NE Switch


Specifications

  • Network Ports : 48x 5 Gigabit Ethernet UPOE RJ-45
  • Management Ports : 1x Management Console RJ-45, 1x Management Console RJ-45, 1x USB 3.0 SSD
  • Stacking Ports : 2x StackWise 480 ports, 2x StackPower connection ports
  • Stacking Cable Options : STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise 480), CAB-SPWR-30CM, CAB-SPWR-150CM (Stack Power) - Cables sold separately
  • Module Slots : 1x Expansion Module Slot - None Included - Sold separately
  • Module Options : C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q - Please note - Existing 3850 network modules are also supported in the Cisco Catalyst 9300 Series platforms.
  • Switch Version : Network Essentials
  • Fan Module Options : 3x FAN-T2 Field Replaceable Fans
  • Power Supplies Included : 1x PWR-C1-1100WAC Included - 2x PSU Slots
  • Power Supply Options : PWR-C1-350WAC, PWR-C1-715WAC or PWR-C1-1100WAC
  • PoE Budget : 645W (w/ Default PSU), 995W (w/ 350W Seconday PSU), 1360W (w/ 715W Secondary PSU), 1745W (w/ 1100W Secondary PSU)
  • Switching Capacity : 640 Gbps (1120 Gbps w/ Stacking)
  • Forwarding Rate : 476.19 Mpps (833.33 Mpps w/ Stacking)
  • MAC Address Table Size : 32,000
  • Model Number : C9300-48UN-E
  • Part Number : C9300-48UN-E, C9300-48UN-E=, C9300-48UN-E-WS
  • Condition : New


Included

  • One (1) New Cisco C9300-48UN-E Catalyst 9300 Series 48x 5 Gigabit UPoE RJ-45 1x Expansion Module Slot Switch as described above
