The Cisco C9300L-24P-4X-E switch is a standout networking solution that offers a powerful combination of features and performance. With 24x 1GB PoE+ RJ-45 ports and 4x 10GB SFP+ uplink interfaces, this switch provides ample connectivity options for various devices in your network.
The Cisco C9300L-24P-4X-E boasts a substantial switching rate of 128 Gbps (which can be expanded to an incredible 448 Gbps with stacking). This switch ensures smooth data transfer even during peak usage periods. Its forwarding rate is also noteworthy at around achieving rates as high as 95 Mpps (or even higher at 333 Mpps when stacked).
This switch is invaluable in installations requiring Power over Ethernet plus capabilities since every one of its RJ45 ports has PoE+. This enables convenient power supply to compatible devices like IP phones, wireless access points, or security cameras.

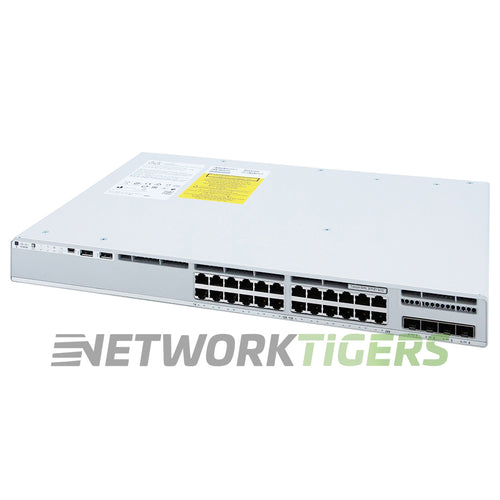

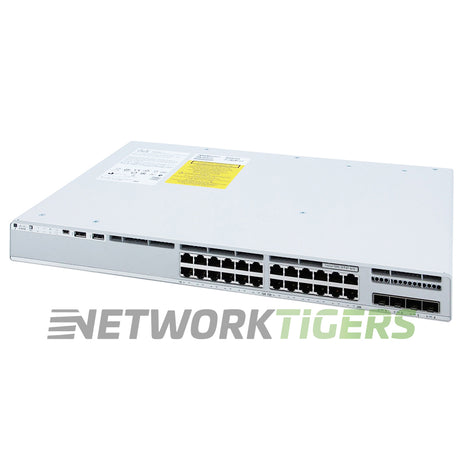

Cisco C9300L-24P-4X-E: Catalyst 9300 24x 1Gb RJ45 PoE+ ports, 4x 10Gb SFP+ uplink ports.
- Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ45
- Uplink Ports : 4x 10 Gigabit Ethernet SFP+
- Management Ports : 2x USB, 1x Mini USB
- Stacking Ports : 2x StackWise-320 connectors (on the rear of switch) - Optional Stacking Hardware - C9300L-STACK-KIT - ordered separately
- Stacking Options : Only other C9300L SKUs with same license level. Number of stack members = 8. Stacking Bandwidth = 320 Gbps
- Stacking Cable Options : STACK-T3-50CM, STACK-T3-1M, STACK-T3-3M - None Included
- Switch Version : Network Essentials
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 3x FAN-T2 Fan Modules Included
- Power Supplies Included : 1x PWR-C1-715WAC-P PSU Included - 2nd Power Supply ordered separately.
- Power Supply Options : PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P - None Included
- PoE Budget : 505W (720W w/ 2nd PSU) - 2nd PSU allows PoE+ 802.3at (30W per port) for all 24 ports.
- Switching Capacity : 128 Gbps (Switching Capacity with Stacking - 448 Gbps)
- Forwarding Rate : 95.23 Mpps (Forwarding Rate with Stacking - 333.33 Mpps)
- MAC Address Table Size : 32,000
- Model Number : C9300L-24P-4X-E
- Part Number : C9300L-24P-4X-E, C9300L-24P-4X-E=, C9300L-24P-4X-E-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9300L-24P-4X-E 24x 1GB PoE+ RJ-45 4x 10GB SFP+ Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
