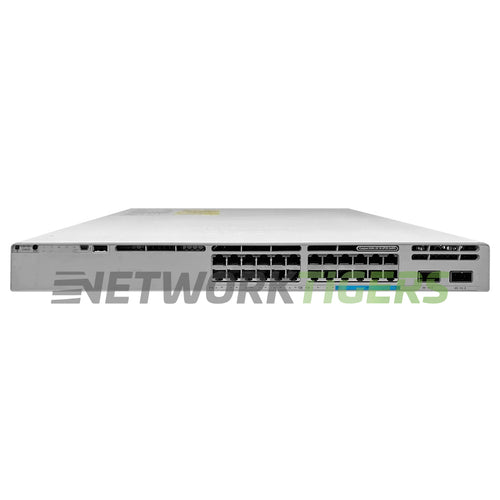

The Cisco C9300L-24UXG-2Q-E switch is a high-performance networking device designed for modern business environments. It offers versatile connectivity options for various devices with 24 UPoE RJ45 ports and 8 MultiGB ports. The switch features two 40GB QSFP+ ports to support high-speed connections.
With a PoE budget of up to 722W, this switch can power multiple networked devices without additional power sources. Its switching capacity of 352 Gbps (up to 672 Gbps with stacking) ensures fast data transfer speeds within your network.
The Cisco C9300L-24UXG-2Q-E has an impressive forwarding rate of approximately 261.90 Mpps (500Mpps with stacking), enabling efficient handling of large amounts of traffic within your organization.
This highly capable switch also boasts a MAC Address Table Size limit of 32K entries, making it suitable for growing networks that require extensive address allocation capabilities.
Cisco C9300L-24UXG-2Q-E: Catalyst 9300 24-port fixed uplinks UPoE, 8xmGig, 2X40G uplinks
- Network Ports : 16x 1 Gigabit Ethernet UPOE RJ45, 8x MultiGigabit RJ45 (100M/1G/2.5G/5G/10G)
- Uplink Ports : 4x 40 Gigabit Ethernet QSFP+
- Management Ports : 2x USB, 1x Mini USB
- Stacking Ports : StackWise-320
- Stacking Options : Optional Stacking Hardware - C9300L-STACK-KIT - ordered separately)
- Stacking Cable Options : STACK-T3-50CM, STACK-T3-1M, STACK-T3-3M - None Included
- Supported Stack Members : Other C9300L SKUs with same license level (Number of Members - 8)
- Switch Version : Network Essentials
- Fan Module Options : 3x FAN-T2 Modules Included
- Power Supplies Included : 1x PWR-C1-1100WAC-P Included - 2nd Power Supply ordered separately.
- PoE Budget : 722W
- Switching Capacity : 352 Gbps (Switching Capacity with Stacking - 672 Gbps)
- Forwarding Rate : 261.90 Mpps (Forwarding Rate with Stacking - 500.00 Mpps)
- MAC Address Table Size : 32,000
- Model Number : C9300L-24UXG-2Q-E
- Part Number : C9300L-24UXG-2Q-E, C9300L-24UXG-2Q-E=, C9300L-24UXG-2Q-E-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9300L-24UXG-2Q-E 24x 1GB UPoE RJ45 (8x MultiGB) 2x 40GB QSFP+ Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
