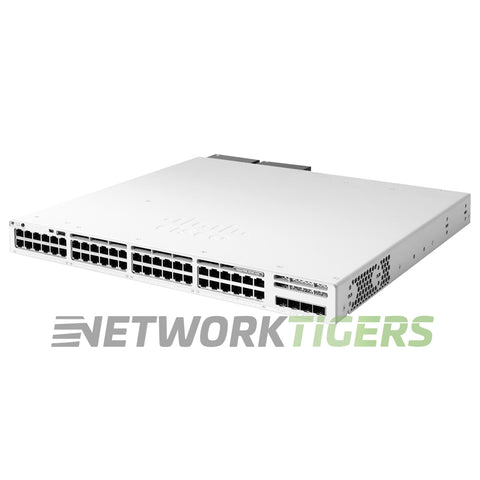

A NEW Cisco Catalyst C9300L-48T-4G-E (Network Essentials version), supplied in open box, forwards at wire speed on 48 Gigabit data ports with four fixed 1G uplinks, for small offices, schools, and retail sites without PoE.
- Nonblocking at 104 Gbps: Switching capacity is 104 Gbps and forwarding is 77.38 Mpps, with a 16 MB packet buffer, 9198-byte jumbo frames, and a 32,000-entry MAC address table.
- 350W default, no PoE: The default supply is the 350W PWR-C1-350WAC-P, and this model has no PoE budget.
- Fixed uplinks at 1G: The four SFP uplinks are built in, and the -4X version has four 10G/1G SFP+ uplinks if you need faster.
- Stack kit part numbers: Stacking uses the optional C9300L-STACK-KIT or C9300L-STACK-KIT2, and up to eight Catalyst 9300L switches share 320 Gbps.
Compare: Want 10G uplinks? The NEW C9300L-48T-4X-E has four 10G/1G SFP+ uplinks. Need a module slot? The NEW C9300-48T-E takes Catalyst 9300 network modules.
What ships with this unit is listed under What's Included. See all Cisco Catalyst 9300 switches and parts.
This unit is NEW in open box and sold with warranty. Need several, or a matched set with power supplies and fans? Ask us for a quote.
- Network Ports : 48x 1 Gigabit Ethernet RJ45
- Uplink Ports : 4x 1 Gigabit Ethernet SFP
- Management Ports : 2x USB, 1x Mini USB
- Stack Technology : StackWise-320 (Optional Stacking Hardware - C9300L-STACK-KIT - ordered separately)
- Supported Stack Members : Other C9300L SKUs with same license level (Number of Members - 8)
- Stacking Cable Options : STACK-T3-50CM, STACK-T3-1M, STACK-T3-3M - None Included
- Switch Version : Network Essentials
- Fan Module Options : 3x FAN-T2 Modules Included
- Power Supplies Included : 1x PWR-C1-350WAC-P Included - 2nd Power Supply ordered separately.
- Switching Capacity : 104 Gbps (Switching Capacity with Stacking - 424 Gbps)
- Forwarding Rate : 77.38 Mpps (Forwarding Rate with Stacking - 315.48 Mpps)
- MAC Address Table Size : 32,000
- Model Number : C9300L-48T-4G-E
- Part Number : C9300L-48T-4G-E, C9300L-48T-4G-E=, C9300L-48T-4G-E-WS
- Condition : New
- One (1) NEW Cisco C9300L-48T-4G-E 48x 1GB RJ45 4x 1GB SFP Switch as described above
