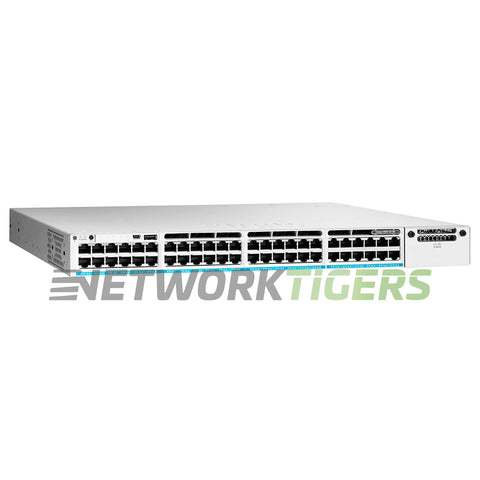

NEW Cisco C9300L-48UXG-4X-E 48x 1GB UPoE RJ-45 (12x MultiGB) 4x SFP+ Switch
New

NEW Cisco C9300L-48UXG-4X-E 48x 1GB UPoE RJ-45 (12x MultiGB) 4x SFP+ Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-6540
UPC: 889728174244

Overview

The Cisco C9300L-48UXG-4X-E is a high-performance switch designed for enterprise networks. Its 48x 1GB UPoE RJ-45 ports and 12x MultiGB ports provide exceptional flexibility in connectivity options. It features 4 SFP+ slots for connecting to fiber optic cables.

This switch offers an impressive switching capacity of up to 176 Gbps (496 Gbps with stacking), enabling smooth data transmission across the network. It also boasts a forwarding rate of up to 130.95 Mpps (369.05 Mpps with stacking), ensuring fast and efficient packet delivery.

With a MAC address table size of o f32,000 entries, this Cisco model can easily handle large-scale network environments without compromising performance or scalability.

Cisco C9300L-48UXG-4X-E: Catalyst 9300 48-port fixed uplinks UPoE, 12xmGig, 4X10G uplinks.


Specifications

  • Network Ports : 36x Gigabit Ethernet RJ-45 UPOE, 12x MultiGigabit Ethernet RJ-45
  • Uplink Ports : 4x 10 Gigabit Ethernet SFP+
  • Management Ports : 2x USB, 1x Mini USB
  • Stack Technology : StackWise-320 (Optional Stacking Hardware - C9300L-STACK-KIT - ordered separately)
  • Supported Stack Members : Other C9300L SKUs with same license level (Number of Members - 8)
  • Fan Modules AirFlow Direction : 3x FAN-T2 Modules Included
  • Power Supplies Included : 1x PWR-C1-1100WAC-P Included - 2x Slots - 2nd Power Supply ordered separately.
  • Switching Capacity : 176 Gbps (Switching Capacity with Stacking - 496 Gbps)
  • Forwarding Rate : 130.95 Mpps (Forwarding Rate with Stacking - 369.05 Mpps)
  • MAC Address Table Size : 32,000
  • Rack Mounts : Included (1-RU)
  • Model Number : C9300L-48UXG-4X-E
  • Part Number : C9300L-48UXG-4X-E, C9300L-48UXG-4X-E=, C9300L-48UXG-4X-E-WS
  • Condition : New


Included

  • One (1) NEW Cisco C9300L-48UXG-4X-E 48x 1GB UPoE RJ-45 (12x MultiGB) 4x SFP+ Switch as described above
