The NEW Cisco Catalyst C9300X-12Y-A is a high-performance switch for enterprise-level networks. With 12x 25GB SFP28 ports and an expansion module slot, it provides flexible connectivity options to meet various network demands.
This model does not support Power over Ethernet (PoE) capability but offers other advanced features. It boasts a switching capacity of up to 1,000 Gbps or impressive stacking capabilities with up to 2,000 Gbps when stacked together.
With a forwarding rate of approximately 744.04 Mpps (1488 Mpps in stacking mode), data traffic flows seamlessly within the network at fast speeds. The MAC address table size can accommodate up to 32,000 entries, enabling efficient handling of large-scale networks without compromising performance.

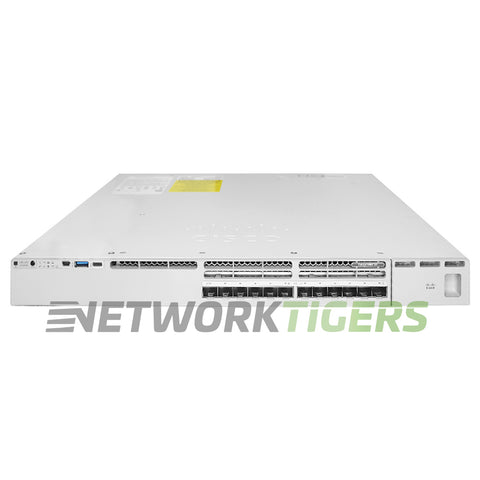

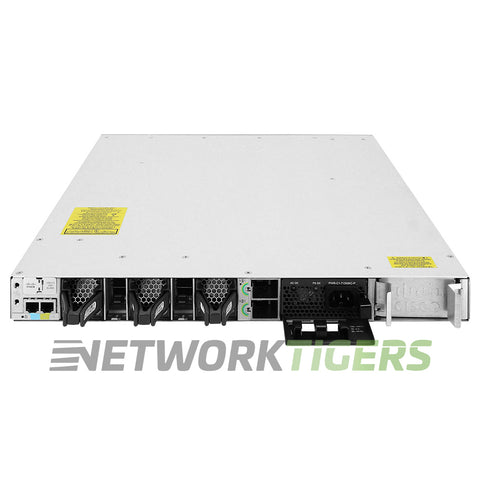

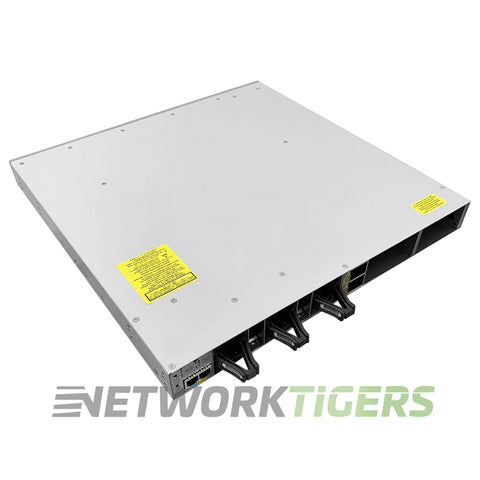

NEW Cisco C9300X-12Y-A Catalyst 9300X 12x 25GB SFP28 1x Exp Module Slot Switch
- Network Ports : 12x 25 Gigabit Ethernet SFP28
- Management Ports : 1x USB 2.0, 1x RJ45 Management
- Stacking Ports : 2x StackWise-1T Ports (1Tbps Stacking Bandwidth), 2x StackPower+ Ports - Cables sold separately
- Stacking Options : Up to 8 Members in a stack (max of 448 ports). Mixed stacking between Catalyst 9300X and 9300 models | Up to 4 switches can be configured in a StackPower stack with the special connector at the back of the switch. C9300X models support StackPower+.
- Stacking Cable Options : StackWise Options are STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M - StackPower Options are CAB-SPWR-30CM, CAB-SPWR-150CM
- Module Slots : 1x Expansion Module Slot - Modules Not Included
- Module Options : C9300X-NM-8M, C9300X-NM-8Y, C9300X-NM-2C, C9300X-NM-4C, C9300-NM-4G, C9300-NM-4M, C9300-NM-8X, C9300-NM-2Q, C9300-NM-2Y
- Switch Version : Network Advantage
- AirFlow Direction : Front-to-Back Airflow (Port Side Intake)
- Fan Module Options : 3x FAN-T2 Fan Modules Included
- Power Supplies Included : 1x 715W AC PSU Included (PWR-C1-715WAC) - 2x Slots - 2nd PSU ordered separately
- Power Supply Options : PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P, PWR-C1-1900WAC-P
- PoE Budget : No PoE
- Switching Capacity : 1,000 Gbps (2,000 Gbps w/ Stacking)
- Forwarding Rate : 744.04 Mpps (1488 Mpps w/ Stacking)
- MAC Address Table Size : 32,000
- Model Number : C9300X-12Y-A
- Part Number : C9300X-12Y-A
- Condition : New
- One (1) NEW Cisco C9300X-12Y-A Catalyst 9300X 12x 25GB SFP28 1x Exp Module Slot Switch as described above
