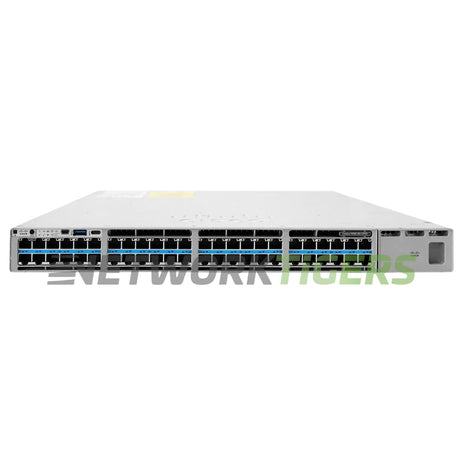

The Cisco C9300X-48HX-E Catalyst 9300X is a high-performance switch designed for enterprise networks. It offers flexible connectivity options with 48 multi-gigabit UPoE RJ45 ports and one expansion module slot.
This switch provides Power over Ethernet (PoE) capabilities with varying power budgets depending on the PSU configuration: 590W with the default PSU or up to an impressive 2490W when equipped with a secondary PSU. This ensures efficient power delivery to connected devices such as IP phones, access points, and cameras.
With a switching capacity of 2000 Gbps (expandable up to 3000 Gbps in stacking mode), this switch enables fast data transfers across your network. The forwarding rate of the C9300X-48HX-E is equally remarkable at 1488 Mpps (or 2232 Mpps in stacking mode).
To accommodate large-scale deployments without compromising performance metrics, the MAC Address Table size supports up to 32k entries. This ensures seamless communication between connected devices while maintaining efficiency throughout your network.
Cisco C9300X-48HX-E Catalyst 9300X 48x MultiGB UPoE+ RJ45 1x Exp Mod Slot Switch
- Network Ports : 48x MultiGigabit Ethernet (10G/5G/2.5G/1G/100M) UPoE+ (90W) RJ45
- Management Ports : 1x USB 2.0, 1x RJ45 Management
- Stacking Ports : 2x StackWise-1T Ports (1Tbps Stacking Bandwidth), 2x StackPower+ Ports - Cables sold separately
- Stacking Options : Up to 8 Members in a stack (max of 448 ports). Mixed stacking between Catalyst 9300X and 9300 models | Up to 4 switches can be configured in a StackPower stack with the special connector at the back of the switch. C9300X models support StackPower+.
- Stacking Cable Options : StackWise Options are STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M - StackPower Options are CAB-SPWR-30CM, CAB-SPWR-150CM
- Module Slots : 1x Expansion Module Slot - Module Not Included
- Module Options : C9300X-NM-8M, C9300X-NM-8Y, C9300X-NM-2C, C9300X-NM-4C, C9300-NM-4G, C9300-NM-4M, C9300-NM-8X, C9300-NM-2Q, C9300-NM-2Y
- Switch Version : Network Essentials
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 3x FAN-T2 Fan Modules Included
- Power Supplies Included : 1x PWR-C1-1100WAC-P PSU Included (Default) - 2nd PSU Slot
- Power Supply Options : PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P, PWR-C1-1900WAC-P
- PoE Budget : 590W (w/ Default PSU) - 940W w/ 350W Secondary PSU, 1305W w/ 715W Secondary PSU, 1690W w/ 1100W Secondary PSU, 2490W w/ 1900W Secondary PSU.
- Switching Capacity : 2,000 Gbps (3,000 Gbps w/ stacking)
- Forwarding Rate : 1488 Mpps (2232 Mpps w/ stacking)
- MAC Address Table Size : 32,000
- Model Number : C9300X-48HX-E
- Part Number : C9300X-48HX-E
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C9300X-48HX-E Catalyst 9300X 48x MultiGB UPoE+ RJ45 1x Exp Mod Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
