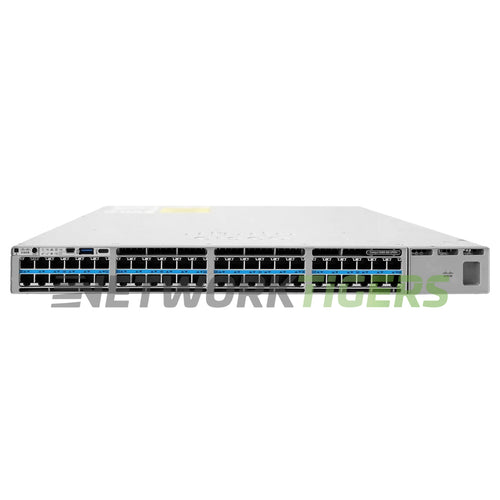

The Cisco Catalyst C9300X-48HX-E is a 1U rack-mount switch in Cisco's Catalyst 9300X modular-uplink series, measuring 1.73 in (4.39 cm) high and 17.3 in (44.0 cm) wide. It provides 48 Multigigabit UPoE+ RJ45 ports, supporting 100M to 10G Ethernet over Category 5e, 6, or 6a cabling, along with one expansion module slot supporting 10G, 25G, 40G, or 100G uplink modules.
Switching capacity is 1,760 Gbps, rising to 2,760 Gbps when stacked, with a forwarding rate of 1309 Mpps (2232 Mpps stacked). PoE budget is 590 watts with the default power supply and up to 2490 watts with a second supply installed, supporting IEEE 802.3af, 802.3at, and 802.3bt powered devices such as wireless access points and IP cameras. The switch stacks with other Catalyst 9300X units over StackWise-1T cabling, and up to eight switches can join a single stack. It maintains a MAC address table of 32,000 entries and mounts in a standard 19-inch rack for wiring-closet or campus access layer deployment.
Cisco C9300X-48HX-E: Catalyst 9300X 48-port Multigigabit UPoE+, modular uplink, Network Essentials.
- Network Ports : 48x 10GB / MultiGigabit Ethernet (10G/5G/2.5G/1G/100M) UPoE+ (90W) RJ45
- Management Ports : 1x USB 2.0, 1x RJ45 Management
- Stacking Ports : 2x StackWise-1T Ports (1Tbps Stacking Bandwidth), 2x StackPower+ Ports - Cables sold separately
- Stacking Options : Up to 8 Members in a stack (max of 448 ports). Mixed stacking between Catalyst 9300X and 9300 models | Up to 4 switches can be configured in a StackPower stack with the special connector at the back of the switch. C9300X models support StackPower+.
- Stacking Cable Options : StackWise Options are STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M - StackPower Options are CAB-SPWR-30CM, CAB-SPWR-150CM
- Module Slots : 1x Expansion Module Slot - Module Not Included
- Module Options : C9300X-NM-8M, C9300X-NM-8Y, C9300X-NM-2C, C9300X-NM-4C, C9300-NM-4G, C9300-NM-4M, C9300-NM-8X, C9300-NM-2Q, C9300-NM-2Y
- Switch Version : Network Essentials
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 3x FAN-T2 Fan Modules Included
- Power Supplies Included : 1x PWR-C1-1100WAC-P PSU Included (Default) - 2nd PSU Slot
- Power Supply Options : PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P, PWR-C1-1900WAC-P
- PoE Budget : 590W (w/ Default PSU) - 940W w/ 350W Secondary PSU, 1305W w/ 715W Secondary PSU, 1690W w/ 1100W Secondary PSU, 2490W w/ 1900W Secondary PSU.
- Switching Capacity : 1,760 Gbps (2,760 Gbps w/ stacking)
- Forwarding Rate : 1309 Mpps (2232 Mpps w/ stacking)
- MAC Address Table Size : 32,000
- Model Number : C9300X-48HX-E
- Part Number : C9300X-48HX-E
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C9300X-48HX-E Catalyst 9300X 48x 10GB UPoE+ RJ45 1x Exp Mod Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
