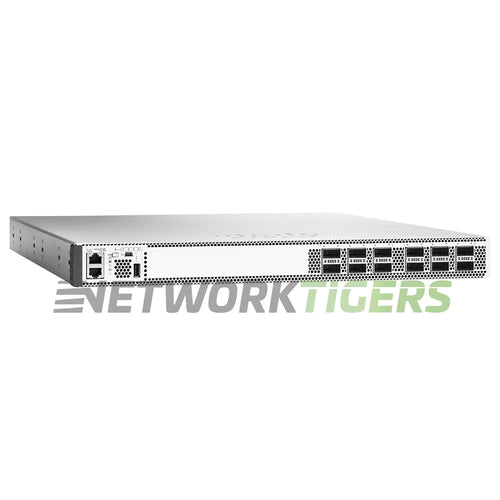

Cisco C9500-12Q-A Catalyst 9500 12x 40GB QSFP+ Front-to-Back Airflow Switch

Cisco C9500-12Q-A Catalyst 9500 12x 40GB QSFP+ Front-to-Back Airflow Switch

$ 3,187.99
$ 2,587.99
5 in stock
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-8341
UPC: 889728051590

Overview

The Cisco C9500-12Q-A Catalyst 9500 is a high-performance switch with excellent network connectivity. Its 12x 40GB QSFP+ ports and front-to-back airflow design deliver reliable power and cooling options for enhanced performance.

This switch boasts an impressive switching capacity of up to 960 Gbps, ensuring fast data transfer rates across your network infrastructure. The forwarding rate can reach 720 Mpps (million packets per second), enabling rapid packet delivery with minimal latency.

With a MAC address table size of 64,000 entries, the C9500-12Q-A effectively handles large-scale networks while maintaining efficient communication between devices.

Cisco Catalyst C9500-12Q-A: Cisco Catalyst 9500 12-port 40G switch.


Specifications

  • Network Ports : 12x 40 Gigabit Ethernet QSFP+
  • Management Ports : 1x USB, 1x Mini USB, 1x RJ45 Console, 1x Gigabit Management
  • Stacking Options : StackWise Virtual (SWV) is supported on this switch. The software is designed to connect two physical switches so they act like a single logical unit.
  • Stacking Cable Options : The user can stack 2x C9500 switches together using a high speed Ethernet cable.
  • Switch Version : Network Advantage Version
  • AirFlow Direction : Front-to-Back Airflow
  • Fan Module Options : 5x FAN-T4-R Fans Modules - Front-to-Back Airflow
  • Power Supplies Included : 1x PWR-C4- 950WAC-R Power Supply included - 2x Slot - 2nd Power Supply ordered separately
  • Power Supply Options : PWR-C4-950WAC-R, PWR-C4-950WDC-R
  • Switching Capacity : Up to 960 Gbps
  • Forwarding Rate : Up to 720 Mpps
  • MAC Address Table Size : 64,000
  • DRAM and Flash : 4GB DDR2 SDRAM, 16GB Flash
  • Model Number : C9500-12Q-A
  • Part Number : C9500-12Q-A, C9500-12Q-A=, C9500-12Q-A-WS
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Cisco C9500-12Q-A Catalyst 9500 12x 40GB QSFP+ Front-to-Back Airflow Switch as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included
  • Five (5) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
