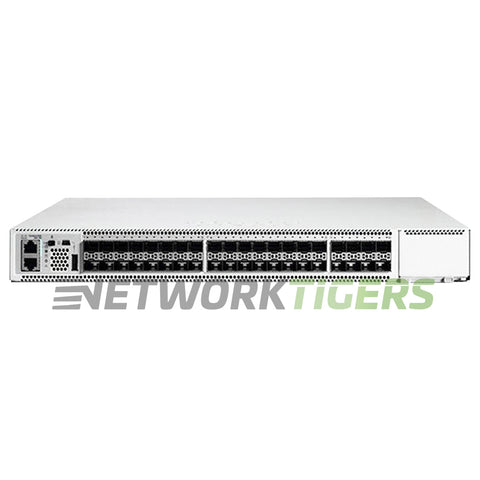

NEW Cisco C9500-40X-A Catalyst 9500 Series 40x 10GB SFP+ Switch
New

NEW Cisco C9500-40X-A Catalyst 9500 Series 40x 10GB SFP+ Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3596
UPC: 889728051552

Overview

The Cisco C9500-40X-A Catalyst 9500 switch is designed for high-performance networking. With a switching capacity of up to 960 Gbps and a forwarding rate of up to 720 Mpps, this switch ensures reliable and fast data transmission.

With its front-to-back airflow design, the C9500-40X-A allows efficient cooling in network racks. It features forty ports that support 10GB SFP+ interfaces for seamless connectivity options.

This switch's MAC address table size is impressive at 64,000 entries, allowing easy management of connected devices on your network. This makes it suitable for large-scale deployments where numerous devices must be addressed.

Cisco Catalyst C9500-40X-A: Cisco Catalyst 9500 40-port 10G switch. Front-to-Back Airflow.


Specifications

  • Network Ports : 40x 10 Gigabit Ethernet SFP+
  • Management Ports : 1x USB, 1x Mini USB, 1x RJ45 Console, 1x Gigabit Management
  • Stacking Options : StackWise Virtual (SWV) is supported on this switch. The software is designed to connect two physical switches so they act like a single logical unit.
  • Stacking Cable Options : The user can stack 2x C9500 switches together using a high speed Ethernet cable.
  • Module Slots : 1x Module Slot - Ordered Separately
  • Module Options : C9500-NM-8X (8-port 1/10 Gigabit Ethernet with SFP/SFP+), C9500-NM-2Q (2-port 40 Gigabit Ethernet with QSFP+)
  • Switch Version : Network Advantage Version
  • AirFlow Direction : Front-to-Back Airflow
  • Fan Module Options : 5x FAN-T4-R Fans Modules - Front-to-Back Airflow
  • Power Supplies Included : 1x PWR-C4-950WAC-R Power Supply included (Front-to-Back Airflow) - 2x Slot - 2nd Power Supply ordered separately
  • Power Supply Options : PWR-C4-950WAC-R, PWR-C4-950WDC-R
  • Switching Capacity : Up to 960 Gbps
  • Forwarding Rate : Up to 720 Mpps
  • MAC Address Table Size : 64,000
  • DRAM and Flash : 4GB DDR2 SDRAM, 16GB Flash
  • Model Number : C9500-40X-A
  • Part Number : C9500-40X-A, C9500-40X-A=, C9500-40X-A-WS
  • Condition : New


Included

  • One (1) NEW Cisco C9500-40X-A Catalyst 9500 40x 10GB SFP+ Switch as described above
