The Arista CCS-720DT-24S-2R CCS-720D is a rack-mount Ethernet switch with 24 x 1Gb RJ45 ports and 4 x 10Gb SFP+ uplink ports. It delivers 128 Gbps switching capacity and 64 Gbps full-duplex throughput, with a forwarding rate of 95 Mpps and latency of 1.2 microseconds. The unit uses back-to-front airflow.
The switch supports up to 509 active VLANs and a MAC address table size of 32,000 entries. It provides 24 copper access ports for Gigabit connections and four SFP+ interfaces for 10 Gigabit uplinks. Designed for data center or aggregation roles, it installs in standard racks and supports modular configuration options within the CCS-720D platform.
Arista CCS-720DT-24S-2R: Arista 720DT, 24 x 1G, 4 x 10G SFP switch, rear to front air, 2 x 100W AC.
- Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ45 (30W PoE on all ports)
- Uplink Ports : 4x 10 Gigabit Ethernet SFP+
- Management Ports : 1x UBS, 1x Console RJ45, 1x 1GB Management RJ45
- System Memory : 4 GB
- CPU : Dual-Core x86
- Packet Buffer : 2 MB
- Max Active VLANs : 509
- Throughput (FDX) : 64 (128 Gbps)
- Switch Version : Arista EOS (4.28.2F Min)
- AirFlow Direction : Back-to-Front Airflow
- Fan Module Options : 3x Fans (Internal)
- Power Supplies Included : 2x AC PSU (Internal)
- Flash : 8 GB
- PoE Budget : 100W
- Switching Capacity : 128 Gbps
- Forwarding Rate : 95 Mpps
- MAC Address Table Size : 32,000
- Latency : 1.2 microseconds
- VLANS : 4096
- Model Number : CCS-720DT-24S-2R
- Part Number : CCS-720DT-24S-2R
- Condition : New

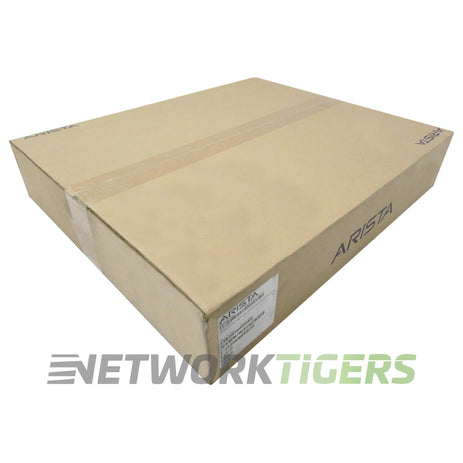

- One (1) NEW Arista CCS-720DT-24S-2R CCS-720D 24x 1GB RJ45 4x 10GB SFP+ B-F Air Switch as described above
