The NEW Arista CCS-720XP-48ZC2-F switch is designed with a high PoE budget of up to 909W, making it suitable for various environments. Depending on your specific needs, it offers multiple power supply options, including Dual 1050W AC PSUs or Dual 500W DC PSUs.
With a switching capacity throughput of up to 880 Gbps in full-duplex mode and a forwarding rate of 1.3 Bpps, this switch ensures fast and efficient data transfer within your network setup. The MAC Address Table Size of 112,000 allows for extensive connectivity while maintaining low latency levels at just under two microseconds - ensuring optimal performance without compromising speed or reliability.

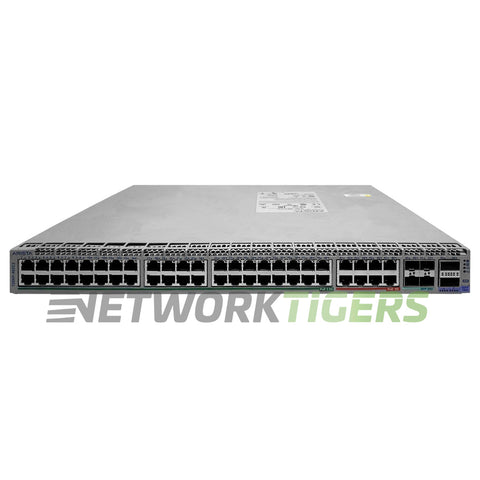

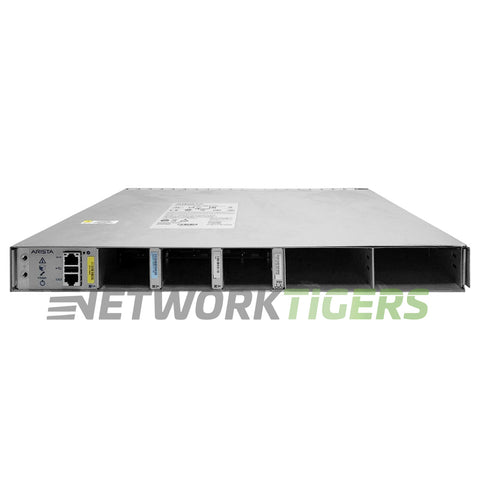

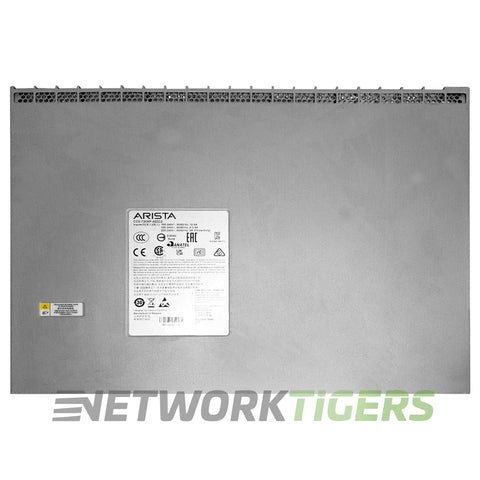

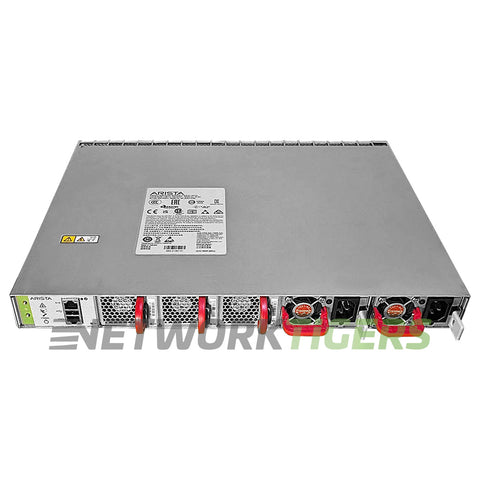

NEW Arista CCS-720XP-48ZC2-F 48x MultiGB PoE RJ45 4x SFP+ 2x QSFP28 F-B Switch
- Network Ports : 40x 100MB - 2.5 Gigabit Ethernet PoE RJ45 (30W per port - 802.3af/at), 8x 100M - 5 Gigabit Ethernet PoE RJ45 (60W per port - 802.3bt)
- Uplink Ports : 4x 25 Gigabit Ethernet SFP+, 2x 100 Gigabit Ethernet QSFP28
- Management Ports : 1x USB, 1x RJ45 Console, 1x Gigabit Management
- Product Family : 720XP Series
- Packet Buffer : 6MB
- Switching Bandwidth : 1120 Gbps
- CPU : Dual Core-x86
- VLAN ID's : 4096
- Switch Version : Arista EOS
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 3x FAN-7000-F Fan Modules Included - Front-to-Back Airflow
- Power Supplies Included : 2x Slots - 1x PWR-1021-AC-RED 1050W AC Power Supply Included - Front-to-Back Airflow
- Power Supply Options : Other PSU Options are PWR-621-AC-RED (650W AC), PWR-521-DC-RED (500W DC)
- PoE Budget : 909W (w/ Default 1x 1050W AC PSU), 1787W (w/ Dual 1050W AC PSU's) - 1047W w/ Dual 650W AC, 794W w/ Dual 500W DC PSU's
- Throughput (FDX) : 440 (880) Gbps
- Forwarding Rate : 1.3 Bpps
- MAC Address Table Size : 112,000
- Latency : 1.2 microseconds
- DRAM and Flash : 4GB Flash, 4GB System Memory
- Model Number : CCS-720XP-48ZC2-F
- Part Number : CCS-720XP-48ZC2-F
- Condition : New
- One (1) New Arista CCS-720XP-48ZC2-F 720XP Series 40x 2.5G PoE 8x 5G 4x 25G SFP+ 2x 100G QSFP28 F-B Switch as described above
