The Cisco C9300X-24HX-A Catalyst 9300X is a versatile switch for enterprise networks. It features 24x 10GB UPoE+ RJ45 ports and an additional expansion module slot, providing flexibility for future growth. With a PoE budget of 735W, it can power devices such as IP phones and wireless access points.
This switch has impressive performance capabilities with its switching capacity of up to 880 Gbps and forwarding rate of up to 327.38 Mpps (million packets per second). The MAC address table size reaches up to 32,000 entries.
Besides its power-packed specifications, the Cisco C9300X-24HX-A offers enhanced security features like Trustworthy Systems Security software and authentication protocols that protect your network from threats.

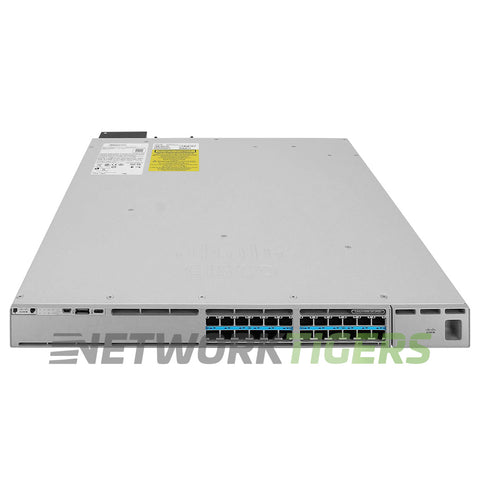

Cisco C9300X-24HX-A Catalyst 9300X 24x 10GB UPoE+ RJ45 1x Exp Mod Slot Switch
- Network Ports : 24x 10 Gigabit Ethernet UPoE+ RJ45 (UPOE+ - 802.3bt 90W)
- Management Ports : 1x USB 2.0, 1x RJ45 Management
- Stacking Ports : 2x StackWise-1T Ports (1Tbps Stacking Bandwidth), 2x StackPower+ Ports - Cables sold separately
- Stacking Options : Up to 8 Members in a stack (max of 448 ports). Mixed stacking between Catalyst 9300X and 9300 models | Up to 4 switches can be configured in a StackPower stack with the special connector at the back of the switch. C9300X models support StackPower+.
- Stacking Cable Options : StackWise Options are STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M - StackPower Options are CAB-SPWR-30CM, CAB-SPWR-150CM
- Module Slots : 1x Expansion Module Slot - Module Not Included
- Module Options : C9300X-NM-8M, C9300X-NM-8Y, C9300X-NM-2C, C9300X-NM-4C, C9300-NM-4G, C9300-NM-4M, C9300-NM-8X, C9300-NM-2Q, C9300-NM-2Y
- Switch Version : Network Advantage
- AirFlow Direction : Front-to-Back Airflow (Port Side Intake)

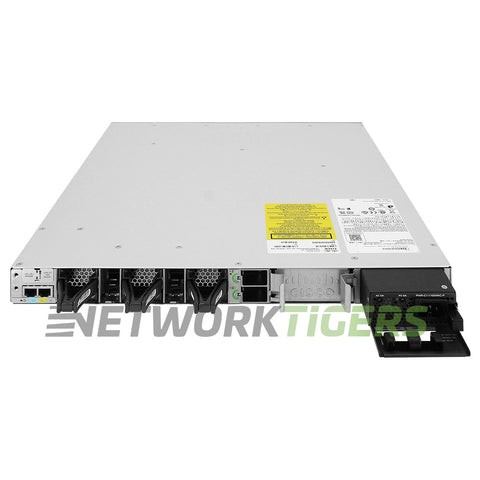

- Fan Module Options : 3x FAN-T2 Fan Modules Included
- Power Supplies Included : 1x PWR-C1-1100WAC-P PSU Included (Default) - 2nd PSU Slot
- Power Supply Options : PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P
- PoE Budget : 735W (w/ Default 1100W AC PSU) - Higher PoE Budget with secondary PSU - 1085W (w/ 350W 2nd PSU), 1450W (w/ 715W 2nd PSU), 1835W (w/ 1100W 2nd PSU)
- Switching Capacity : 880 Gbps
- Forwarding Rate : 327.38 Mpps
- MAC Address Table Size : 32,000
- : ACC-KIT-T1 Included (1-RU) - 4PT-KIT-T2 Extension rails and 5 brackets for four-point mounting is available separately.
- Model Number : C9300X-24HX-A
- Part Number : C9300X-24HX-A
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C9300X-24HX-A Catalyst 9300X 24x 10GB UPoE+ RJ45 1x Exp Mod Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
