Arista DCS-7050QX-32-R 32x 40GB QSFP+ Back-to-Front Airflow Switch

$ 197.99
$ 166.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-2624 ASK FOR QUOTE

Overview

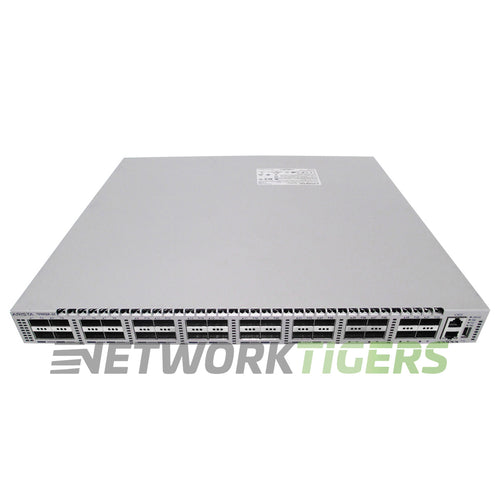

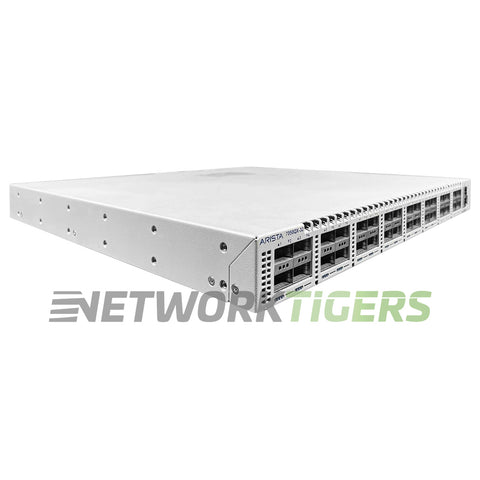

The Arista DCS-7050QX-32-R is a 1RU 7050X switch with 32 QSFP+ ports at 40GbE and no SFP+ ports. With breakout cables it supports up to 96 10GbE ports, so it can serve as a 40GbE spine or as a dense 10GbE leaf.

Arista rates it at 2.56 Tbps and 1440 Mpps with 550 ns latency. A 12MB shared buffer uses Dynamic Buffer Allocation. A dual-core x86 CPU with 4GB of DRAM and 2GB of flash runs EOS, and the MAC table holds 32K entries in base mode or 288K in UFT mode.

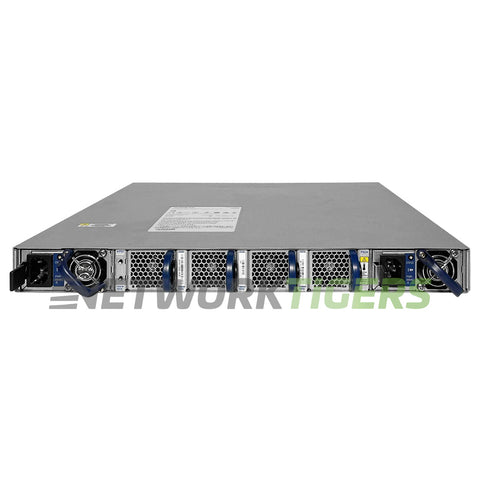

This is the -R version with back-to-front (port-side exhaust) airflow, so the port side faces the hot aisle. Its four FAN-7000-R fans run N+1 and its two PWR-460AC-R power supplies run 1+1, so replacement fans and supplies should be the -R parts for this airflow. BGP and OSPF need the Arista Enhanced L3 license (LIC-FIX-2-E), sold separately.

This listing ships with two AC power supplies, four fan modules and one power cord, as shown in Item Includes. Arista switches from NetworkTigers ship with 2-post rack ears only, and 4-post rails are quoted separately.

Need port-side intake instead? The DCS-7050QX-32-F front-to-back version is the same switch with the opposite airflow. A new open box DCS-7050QX-32-R is also listed, and a spare PWR-460AC-R power supply matches this airflow.

This seller refurbished Arista DCS-7050QX-32-R switch is tested, working, and covered by the NetworkTigers one-year warranty.


Specifications

  • Network Ports : 32x 40GB QSFP+
  • Uplink Ports : All 32 QSFP+ ports
  • Management Ports : 1x 10/100/1000 Ethernet, RS-232 console, USB
  • Packet Buffer : 12MB
  • AirFlow Direction : Back-to-front (port-side exhaust)
  • Fan Module Options : FAN-7000-R
  • Power Supplies Included : 2x PWR-460AC-R (2 power supply bays)
  • Power Supply Options : PWR-460AC-R, PWR-460DC-R
  • PoE Budget : None
  • Switching Capacity : 2.56 Tbps
  • Forwarding Rate : 1.44 Bpps
  • MAC Address Table Size : 32K (base mode), 288K (UFT mode)
  • Latency : 550 ns
  • DRAM and Flash : 4 GB DRAM, 2 GB flash
  • Model Number : DCS-7050QX-32-R
  • Part Number : DCS-7050QX-32-R
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Arista DCS-7050QX-32-R 32x 40GB QSFP+ Back-to-Front Airflow Switch as described above
  • One (1) Power Cord Included
  • Two (2) AC Power Supplies Included
  • Four (4) Fan Modules Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
