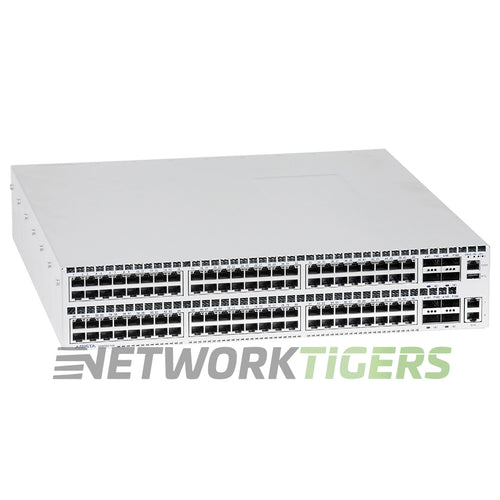

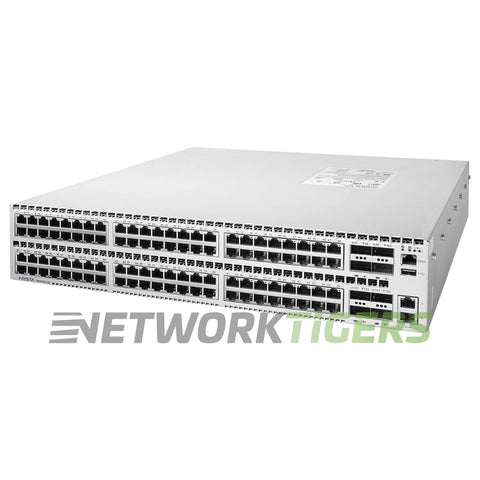

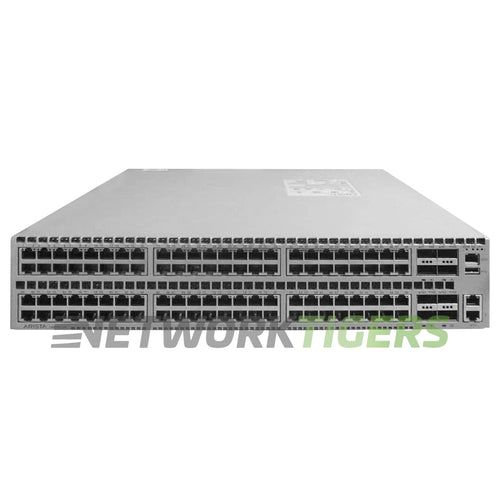

The DCS-7050TX-128-F is a 2RU 7050X copper switch with 96 RJ-45 ports at 1GbE or 10GbE (10GBASE-T) and eight 40GbE QSFP+ uplinks. It serves high-count copper server access from a single chassis.
Capacity is 2.56 Tbps at 1.44 Bpps, with latency of 3 microseconds and a 12 MB packet buffer. Management is through Ethernet, an RJ-45 RS-232 console, and USB.
This unit is front-to-back (port-side intake). Arista also sells the opposite airflow version (-R), so match it to the rack. It uses two 750W AC supplies (PWR-745AC-F) in 1+1 hot-swap rather than the 500W supply used on 1RU 7050X models, and PWR-1900-DC-F is the DC option. Four hot-swap FAN-7002-F fans run N+1. Keep every fan and supply on the same airflow. Arista lists typical and maximum draw of 570W and 740W, so plan circuit capacity accordingly. The chassis measures 19 x 18.1 x 3.5 inches and weighs 34 lb.
Advanced Layer 3 features such as BGP and OSPF need an Arista Enhanced L3 license, which is not included and is available from Arista partners.
Arista also sells the DCS-7050TX-128-R with the opposite airflow. A new DCS-7050TX-128-F is also available. Matching spares include the PWR-745AC-F power supply and the FAN-7002-F fan module.
This seller refurbished DCS-7050TX-128-F is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 96x 1/10GBASE-T RJ-45, 8x 40GbE QSFP+
- Uplink Ports : 8x 40GbE QSFP+
- Management Ports : Ethernet, RS-232 console (RJ-45), USB
- CPU : High Performance x86 CPU
- VLAN's : 4096
- Switch Version : Arista EOS - Group 2
- AirFlow Direction : Front-to-back (port-side intake)
- Fan Module Options : FAN-7002-F
- Power Supplies Included : 2x 750W AC, 1+1 hot-swap
- Power Supply Options : PWR-745AC-F, PWR-1900-DC-F
- PoE Budget : None
- Switching Capacity : 2.56 Tbps
- Forwarding Rate : 1.44 Bpps
- MAC Address Table Size : 288,000
- Latency : 3 microseconds
- DRAM : Up to 8GB
- Model Number : DCS-7050TX-128-F
- Part Number : DCS-7050TX-128-F
- Condition : Seller refurbished
- One (1) Seller Refurbished Arista DCS-7050TX-128-F 96x 10GB Copper 8x 40GB QSFP+ F-B Airflow Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Four (4) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
