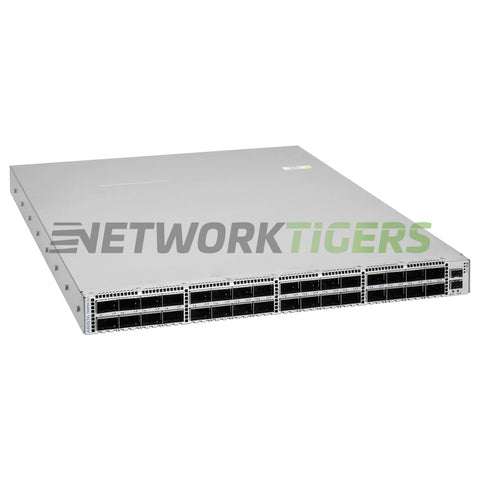

Arista DCS-7060DX4-32-F is a fixed-configuration data center switch from Arista Networks with 32 × 400 GbE QSFP-DD ports and front-to-back airflow. It delivers 25.6 Tbps switching capacity, 8 Bpps forwarding rate, and 700 ns latency.
The switch supports high-density 400 GbE deployments for spine or leaf roles requiring large east-west bandwidth. A MAC address table of up to 72,000 entries enables scalable Layer 2 designs. Front-to-back airflow supports hot-aisle/cold-aisle layouts. QSFP-DD interfaces support breakout to lower-speed Ethernet when supported by the optics and cabling.
Arista DCS-7060DX4-32-F: Arista 7060X4, 32x400GbE QSFP-DD switch, front-to-rear air, 2xAC.
- Network Ports : 32x 400 Gigabit Ethernet QSFP-DD
- Port Supported Speeds : 400GbE, 200GbE - 64x (OSFP or QSFP-DD to 2xQSFP 200G), 100GbE - 128x (OSFP or QSFP-DD to 4xQSFP 100G), 50GbE - 128x (OSFP or QSFP-DD to 4xQSFP 50G), 40GbE - 64x (OSFP or QSFP-DD to 2xQSFP 40G)
- Management Ports : 1x Gigabit Management RJ45, 1x RS-232 RJ45, 1x USB Type A
- CPU : Multi-Core x86
- AirFlow Direction : Front-to-Back Airflow
- Fan Modules Included : 5x FAN-7001DH-F Fans Modules Included
- Fan Module Options : FAN-7001DH-F is the only fan for this switch
- Power Supplies Included : 2x PWR-1611-AC-RED PSU's Included
- Power Supply Options : PWR-1611-DC-RED is the DC option
- Switching Capacity : 25.6 Tbps
- Forwarding Rate : 8 Bpps
- MAC Address Table Size : Up to 72,000
- IPv4 Host Routes : 16K
- Max IPv4 LPM Routes : 640K
- Multicast routes : 16K
- Virtual interfaces (VLANs) : 4096
- Packet Buffer : Shared 64MB Buffer with burst absorption
- Latency : 700 ns
- DRAM and Flash : 8GB DRAM, 8GB Flash
- Model Number : DCS-7060DX4-32-F
- Part Number : DCS-7060DX4-32-F
- Condition : New
- One (1) NEW Arista DCS-7060DX4-32-F 32x 400GB QSFP-DD Front-to-Back Airflow Switch as described above
