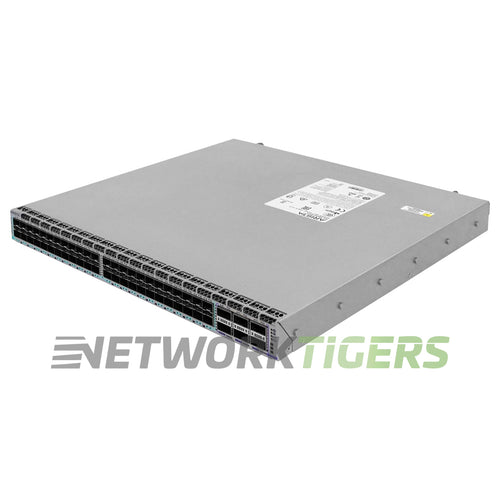

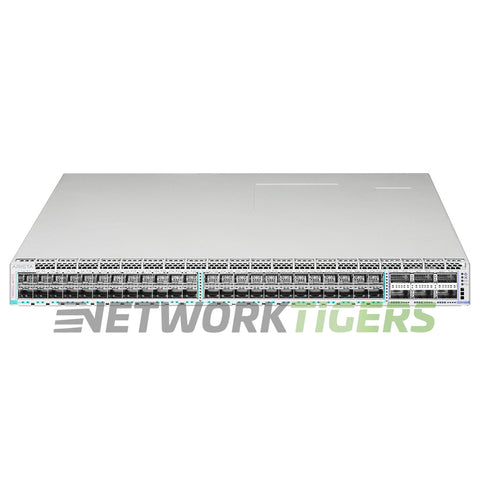

Arista DCS-7060SX2-48YC6-R 48x 25GB SFP28 6x 100GB QSFP Back-to-Front Air Switch

Arista DCS-7060SX2-48YC6-R 48x 25GB SFP28 6x 100GB QSFP Back-to-Front Air Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-8175

Overview

The Arista DCS-7060SX2-48YC6-R is a high-performance switch designed for data centers. It features 48x 25GB SFP28 ports and 6x 100GB QSFP ports, offering flexibility in network connectivity options. With a switching capacity of up to an impressive 3.6 Tbps and a forwarding rate of up to 2.7 Bpps.

The MAC Address Table Size can accommodate up to 136,000 entries, enabling efficient handling of large-scale networks without affecting speed or latency issues. Speaking about latency - it offers minimal delay with just around 450ns response time.

This back-to-front air switch ensures effective cooling mechanisms while maintaining optimal airflow within your data center environment—ensuring reliable operation even under heavy loads.

Arista DCS-7060SX2-48YC6-R 48x 25GB SFP28 6x 100GB QSFP Back-to-Front Air Switch


Specifications

  • Network Ports : 48x 25 Gigabit Ethernet SFP28
  • Uplink Ports : 6x 100 Gigabit Ethernet QSFP
  • Management Ports : 1x RS232 Management RJ45, 1x USB, 1x Gigabit Ethernet Management
  • Packet Buffer : 22MB
  • VLAN ID's : 4096
  • CPU : Multi-Core x86
  • Switch Version : Arista EOS
  • AirFlow Direction : Back-to-Front Airflow
  • Fan Module Options : 4x FAN-7000-R Fan Modules included (N+1 redundant) - Back-to-Front Airflow
  • Power Supplies Included : 2x PWR-500AC-R Power Supplies (AC) included (1+1 Redundant)
  • Power Supply Options : PWR-500AC-F is the reverse airflow option
  • Switching Capacity : 3.6 Tbps
  • Forwarding Rate : 2.7 Bpps
  • MAC Address Table Size : 136,000
  • Latency : 450ns
  • DRAM and Flash : 8GB DRAM, 4GB Flash
  • Model Number : DCS-7060SX2-48YC6-R
  • Part Number : DCS-7060SX2-48YC6-R
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Arista DCS-7060SX2-48YC6-R 48x 25GB SFP28 6x 100GB QSFP Back-to-Front Air Switch as described above
  • Two (2) Power Cord Included
  • Two (2) AC Power Supplies Included
  • Four (4) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
