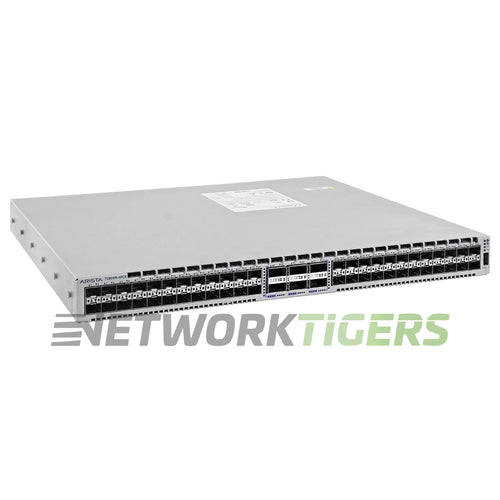

Arista DCS-7280SRA-48C6-F 7280R Series 48x 10G SFP+ 6x 100G QSFP F-B Air Switch

Arista DCS-7280SRA-48C6-F 7280R Series 48x 10G SFP+ 6x 100G QSFP F-B Air Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-4339

Overview

The Arista DCS-7280SRA-48C6-F 7280R Series is a high-performance switch for data centers and enterprise networks. With its 48x10G SFP+ ports and 6x100G QSFP ports, this switch provides fast connectivity options. It has a switching capacity of up to 2.16 Tbps, allowing for efficient handling of network traffic.

This switch offers impressive forwarding rate capabilities with speeds reaching up to 720 Mpps (Million Packets per Second). The MAC Address Table Size can accommodate up to an impressive number of entries at around768,000 addresses.

With low latency starting from as little as 3.8 microseconds (µs), it ensures quick response times even during heavy network loads or demanding applications.

Arista DCS-7280SRA-48C6-F: Arista 7280RA, 48x10GbE (SFP+) & 6x100GbE QSFP switch router, AlgoMatch, front to rear air, 2x AC.


Specifications

  • Network Ports : 48x 10 Gigabit Ethernet SFP+
  • Uplink Ports : 6x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x RS-232 Management, 2x USB, 1x RJ45 Serial Console.
  • AlgoMatch : Yes
  • AirFlow Direction : Front to Back Airflow
  • Fan Module Options : 4x FAN-7000H-R - Front to Back Airflow
  • Power Supplies Included : 2x PWR-500AC-F 500W AC Power Supplies Included
  • Power Supply Options : PWR-500AC-R is Back-to-Front Airflow option. PWR-745AC-F, PWR-745AC-R are 750W Options
  • Switching Capacity : 2.16 Tbps
  • Forwarding Rate : 720 Mpps
  • MAC Address Table Size : 768,000
  • Latency : From 3.8us
  • DRAM and Flash : Up to 32GB DRAM , 4GB Flash - Quad-Core x86 CPU
  • Model Number : DCS-7280SRA-48C6-F
  • Part Number : DCS-7280SRA-48C6-F, JQ092A
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Arista DCS-7280SRA-48C6-F 7280R Series 48x 10G SFP+ 6x 100G QSFP28 F-B Air Switch as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • Four (4) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
