NEW Juniper EX3400-48T-AFI 48x 1GB RJ45 4x 1GB SFP+ 2x QSFP+ B-F Air Switch
New

NEW Juniper EX3400-48T-AFI 48x 1GB RJ45 4x 1GB SFP+ 2x QSFP+ B-F Air Switch

$ 1,586.99
11 in stock
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New

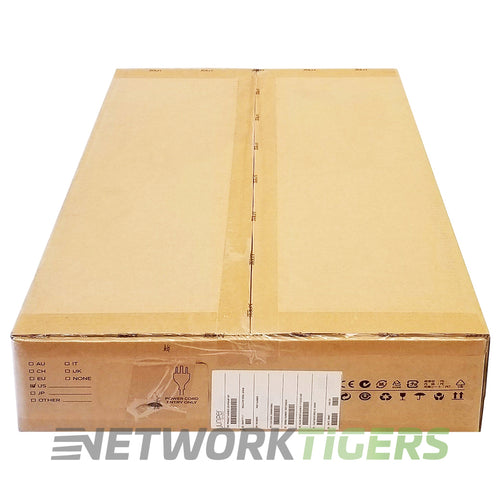

New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3989
UPC: 832938071049

Overview

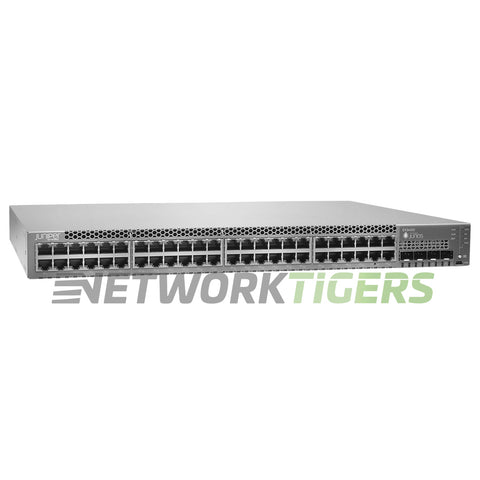

The Juniper EX3400-48T-AFI is a high-performing switch that offers advanced functionality in a compact form factor. With 48 1 Gbe RJ45 ports, this switch provides ample connectivity options for small to medium-sized networks.

The switching capacity of up to 176 Gbps and forwarding rate of up to 130 Mbps ensure fast data transfer rates. This unit has back-to-front or AFI airflow. This is ideal when the network cabling is in the cool corridor.

The EX3400-48T-AFI supports virtual chassis technology, allowing multiple switches to be interconnected and managed as a single logical device. This enhances scalability and simplifies network administration. The EX3400-48T is well-suited for environments where PoE is not needed. Due to its non-blocking architecture, it can easily handle demanding applications such as video streaming or database access.

This switch supports various Layer 2 Ethernet features, including VLANs, Spanning Tree Protocol (STP), link aggregation groups (LAGs), etc., making it flexible enough to meet diverse networking requirements.

Juniper EX3400-48T-AFI: EX3400 48-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+, 2 x 40GbE QSFP+, redundant fans, back-to-front airflow, 1 AC PSU JPSU-150-AC-AFI included (optics sold separately).


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet RJ45
  • Uplink Ports : 4x 10 Gigabit Ethernet SFP+, 2x 40 Gigabit Ethernet QSFP+
  • Management Ports : 1x Console RJ45, 1x Gigabit RJ45, 1x USB
  • Stacking Ports : Uplink ports can be configured as Virtual Chassis interfaces and connected via standard 10G/40G optic interfaces (40G uplink ports are preconfigured by default as Virtual Chassis ports).
  • AirFlow Direction : Back to Front airflow.
  • Fan Module Options : 2x EX3400-FAN-AFI Fan Modules
  • Power Supplies Included : 1x JPSU-600-AC-AFI - 2x Slots - 2nd Power Supply ordered separately.
  • Switching Capacity : 336 Gbps
  • Forwarding Rate : 250 Mpps
  • MAC Address Table Size : 32,000
  • Model Number : EX3400-48T-AFI
  • Part Number : EX3400-48T-AFI
  • Condition : New


Included

  • One (1) NEW Juniper EX3400-48T-AFI 48x 1GB RJ45 4x 1GB SFP+ 2x QSFP+ B-F Air Switch as described above
