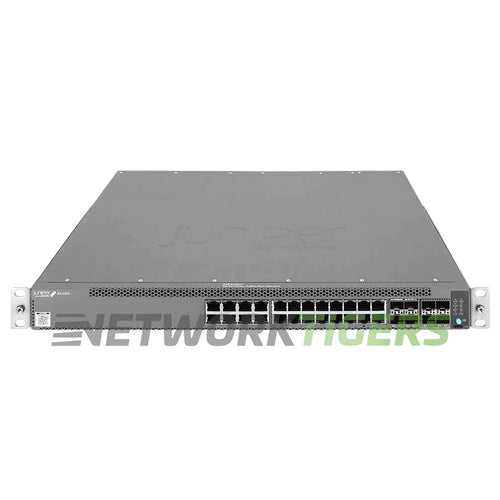

Juniper EX4100-24P 24x 1GB PoE+ RJ-45 4x 10GB SFP+ 4x 25GB SFP28 F-B Air Switch

Juniper EX4100-24P 24x 1GB PoE+ RJ-45 4x 10GB SFP+ 4x 25GB SFP28 F-B Air Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-1616
UPC: 832938097308

Overview

The Juniper EX4100-24P switch features 24 PoE+ RJ-45 ports, 4 10GB SFP+ ports, and 4 25GB SFP28 F-B Air Switch ports. With a switching capacity of up to 164 Gbps (unidirectional) or328 Gbps (bidirectional), this switch provides efficient data transfer rates with a forwarding rate of up to 244 Mpps.

The MAC Address Table Size supports up to 64,000 entries for effective network management. Designed for high-performance networks, the Juniper EX4100-24P is ideal for businesses that require reliable connectivity and fast data transmission speeds.

This switch offers advanced capabilities in networking infrastructure while ensuring stable operation in demanding environments.

Juniper EX4100-24P 24x 1GB PoE+ RJ-45 4x 10GB SFP+ 4x 25GB SFP28 F-B Air Switch


Specifications

  • Network Ports : 24x 1 Gigabit PoE+ RJ-45
  • Uplink Ports : 4x 10 Gigabit SFP+ 4x 25 Gigabit SFP28 (Stacking/Uplink)
  • Management Ports : 1x Out of Band Management, 1x Serial RJ-45
  • Stacking Ports : 25 Gigabit uplink ports can be used for stacking.
  • Stacking Options : 10-member Virtual Chassis support. The EX4100 switches can form a Virtual Chassis with any other models within the EX4100 product line
  • Stacking Cable Options : Juniper 25GB SFP28 Direct Attach or Active Optical cables.
  • Switch Version : Junos
  • AirFlow Direction : Front-to-Back Airflow (AOC)
  • Fan Module Options : 2x EX4100-FAN-AFO Fan Modules included
  • Power Supplies Included : 1x JPSU-920-AC-AFO Included - 920W AC (Front-to-Back Airflow)
  • Power Supply Options : JPSU-920-AC-AFO, JPSU-150-AC-AFO
  • PoE Budget : 740W (1x PSU), 1440W (2x PSU)
  • Switching Capacity : 164 Gbps (unidirectional) / 328 Gbps (bidirectional)
  • Forwarding Rate : 244 Mpps
  • MAC Address Table Size : 64,000
  • DRAM : 4 GB with Error Correcting Code (ECC)
  • Model Number : EX4100-24P
  • Part Number : EX4100-24P
  • Condition : Seller refurbished


Included

  • One (1) Seller refurbished Juniper EX4100-24P 24x 1GB PoE+ RJ-45 4x 10GB SFP+ 4x 25GB SFP28 F-B Air Switch as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included
  • Two (2) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
