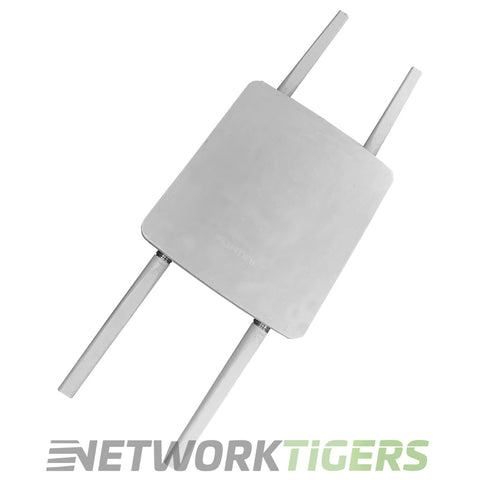

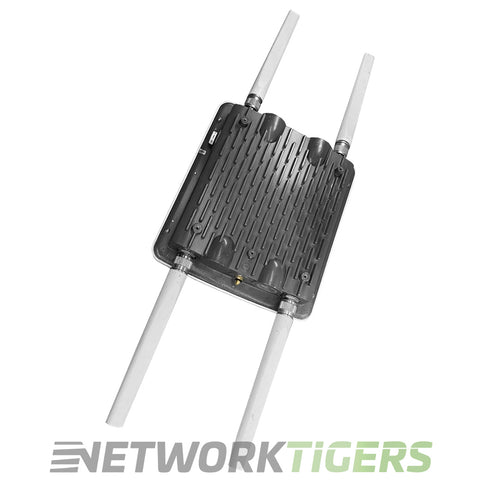

The Fortinet FAP-222E-A from Fortinet is an outdoor, dual-radio wireless access point with a 2x2 MIMO form factor. It supports external antennas and delivers transmission speeds of up to 400 Mbps on Radio 1 (2.4 GHz) and up to 867 Mbps on Radio 2 (5 GHz).
Designed for the US regulatory domain, it covers frequencies including 2.400–2.4835 GHz and multiple sub-bands within the 5 GHz range: 5.150–5.250, 5.250–5.350, 5.470–5 .725 , and 57525 –58xx0 MHz.This AP uses PoE power input compliant with IEEE standards; mounting options include wall or pole mount configurations suitable for outdoor installation where extended coverage is required via directional or omnidirectional antenna models depending on deployment scenario compatibility requirements such as Wi-Fi controller support through FortiGate systems .
Fortinet FAP-222E-A: Outdoor Wireless AP - Dual radio (802.11 b/g/n and 802.11 a/n/ac Wave 2, 2x2 MU-MIMO), external antennas included, 1 x 10/100/1000 RJ45 port, BT / BLE. Pole / wall mount, lightning grounding wire, and PoE injector included. This unit is registrable on the FortiCloud.
- Interface Ports : 1x 1 Gigabit Ethernet RJ-45 (IEEE 802.3af/at)
- Number of Radios : 2 + 1 BLE
- Number of Antennas : 4 External (Type N) + 1 BLE External (RP-SMA)
- Registrable : Yes - This unit is registrable on the FortiCloud
- Power Options : GPI-115, or GPI-130 (Not Included) - Can be powered via PoE port (PoE injector included)
- Frequency : 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
- Maximum Data Rate : Radio 1 = up to 400 Mbps, Radio 2 = up to 867 Mbps
- Regulatory domain : US (A)
- Mounts : Mounting kit for Wall or Pole, Grounding cable, 4 dipole Wi-Fi antennas, 1 BLE antenna
- Model Number : FAP-222E-A
- Part Number : FAP-222E-A, FAP-222E
- Condition : Seller refurbished
- One (1) Seller refurbished Fortinet FAP-222E-A FortiAP Series Outdoor 2x2 MU-MIMO Registrable/Unclaimed WAP as described above
- One (1) Power Injector Included
- One (1) Mount Kit Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
