The Fortinet FG-101F, part of the FortiGate 100F series, is an advanced firewall designed for high-performance networks. Its robust features and efficient design offer protection against cyber threats while ensuring optimal network performance.
The FG-101F has impressive throughput capabilities. It can deliver up to 20 Gbps Firewall Throughput and 11.5 Gbps IPsec VPN Throughput - making it suitable for bandwidth-intensive environments such as large enterprises or data centers.
This appliance provides a wide range of security services, including antivirus scanning, intrusion prevention system (IPS), web filtering, and SSL inspection – all working together seamlessly to safeguard your network from potential attacks.
Fortinet FG-101F: 22x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x Mgmt port, 2x HA ports, 16x switch ports with 4 SFP port shared media), 4 SFP ports, 2x 10 GE SFP+ FortiLinks, 480GB onboard storage, dual power supplies redundancy. These may not be able to be added to the Fortinet cloud. Contact Fortinet to learn their secondary market policy.
- Network Ports : 22x 1 Gigabit Ethernet RJ-45 (including 2x WAN ports, 1x DMZ port, 1x Mgmt port, 2x HA ports, 16x switch ports with 4 SFP port shared media)
- Uplink Ports : 4x 1 Gigabit Ethernet SFP, 2x 10 Gigabit Ethernet SFP+
- Management Ports : 1x USB, 1x RJ-45 Console
- Power : 2x Built In (Non Hot Swappable) PSU's - 100–240V AC, 50/60 Hz
- Stateful Throughput : 20 / 18 / 10 Gbps (1518 / 512 / 64 byte, UDP)
- Firewall Throughput : 15 Mpps
- IPS Throughput : 2.6 Gbps (WIth Licence / Subscription)
- Threat Protection Throughput : 1 Gbps (WIth Licence / Subscription)
- NGFW Throughput : 1.6 Gbps (WIth Licence / Subscription)
- Concurrent Sessions : 1.5 Million
- New Sessions/Second : 56 000
- IPsec VPN Throughput : 11.5 Gbps
- IPsec VPN Tunnels : 2000
- SSL-VPN Throughput : 1 Gbps
- Hard Drive : 1x 480 GB SSD
- Model Number : FG-101F
- Part Number : FG-101F
- Condition : New

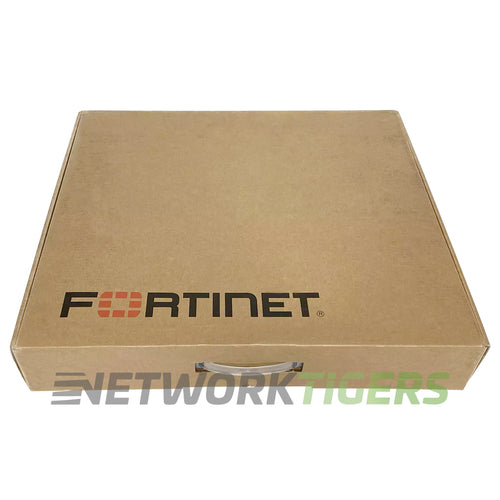

- One (1) NEW Fortinet FG-101F FortiGate 100F Series 20 Gbps Firewall w/ 1x 480GB SSD as described above
