The Fortinet FG-500D is a high-performance firewall designed for enterprise-level security. With its impressive throughput capabilities of 16 Gbps and support for 10x 1GB RJ-45 and 8x SFP ports, it ensures seamless network connectivity.
This firewall is equipped with advanced features like IPS (Intrusion Prevention System) that offer protection against known vulnerabilities in real-time. It delivers remarkable concurrent session performance, supporting up to six million sessions simultaneously.
With an IPS throughput rate of 4.7/3.5 Gbps (HTTP / Enterprise Mix), the FortiGate FG-500D guarantees efficient data processing without reducing network speed.
Fortinet FG-500D: 10x GE RJ45 ports, 8x GE SFP slots, SPU NP6 and CP8 hardware accelerated, 120 GB onboard SSD storage.
- Network Ports : 10x 1 Gigabit Ethernet RJ45
- Uplink Ports : 8x 1 Gigabit Ethernet SFP
- Management Ports : 2x USB, 1x RJ45 Console
- Fans / Airflow Direction : Fixed
- Power : Internal AC PSU
- Stateful Throughput : 16 / 16 / 16 Gbps (1518 / 512 / 64 byte, UDP)
- Firewall Throughput : 24 Mpps
- IPS Throughput : 4.7 / 3.5 Gbps (HTTP / Enterprise Mix)
- Threat Protection Throughput : 2 Gbps (Enterprise Traffic Mix)
- NGFW Throughput : 2.5 Gbps (Enterprise Traffic Mix)
- Concurrent Sessions : 6 Million
- New Sessions/Second : 250,000
- IPsec VPN Throughput : 14 Gbps
- IPsec VPN Tunnels : 2,000 (Gateway-to-Gateway), 10,000 (Client-to-Gateway)
- SSL-VPN Throughput : 400 Mbps
- Hard Drive : 120 GB SSD
- Model Number : FG-500D
- Part Number : FG-500D
- Condition : New

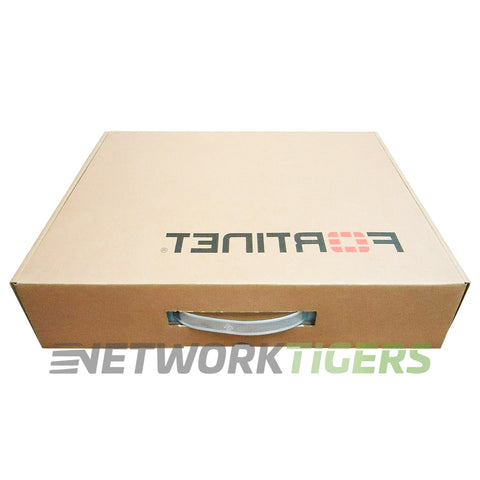

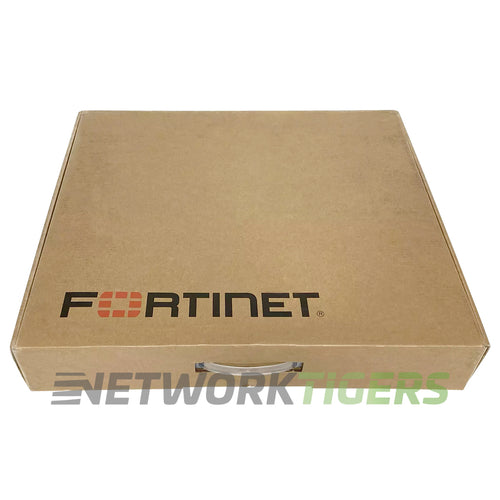

- One (1) NEW Fortinet FG-500D FortiGate 500D 16 Gbps 10x 1GB RJ45 8x 1GB SFP Firewall as described above
