The HPE Aruba Q9H68A AP-514 (US) is a dual-radio access point for high-performance wireless connectivity. With support for the latest 802.11ax standard, this WAP delivers impressive data rates up to 5.4 Gbps across both the 2.4 GHz and 5 GHz frequencies, making it ideal for demanding network environments.
Featuring advanced MIMO technology, this access point can accommodate up to 256 wireless clients per radio. Its four spatial streams on the primary radios and two spatial streams supported by secondary ones allow seamless Wi-Fi coverage in various settings.
HPE Aruba Q9H68A AP-514 (US) Dual Radio 4x4:4 + 2x2:2 802.11ax Ex Ant (TAA) WAP
- Interface Ports : 1x HPE SmartRate port, 1x 1 Gigabit RJ45
- Wireless Protocol : 802.11a/b/g/n/ac

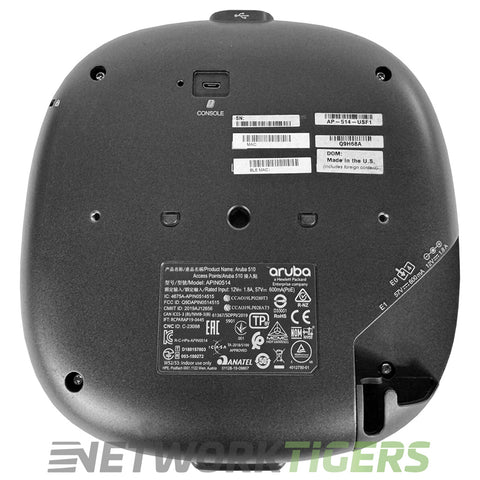

- Management Ports : 1x Reset Button, 1x Micro USB Console

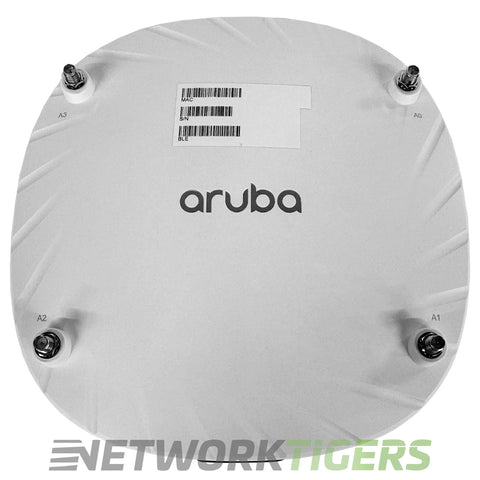

- Antenna Ports : 4x RP-SMA Connectors - for external dual band antennas (A0 through A3, corresponding with radio chains 0 through 3)
- Capacity : BSSIDs per radio = 16, Wireless clients per Wi-Fi radio = 256
- Power Options : Power sources are sold separately - The AP supports direct DC power and Power over Ethernet (PoE; on port E0)
- Frequency : 2.4 GHz, 5 GHz
- Data Link Protocol : IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Performance : Maximum data rate (2.4 GHz) = 575 Mbps, Maximum data rate (5 GHz) = 4.8 Gbps, Peak data rate = 5.4 Gbps
- Regulatory domain : US
- TAA : Yes
- Mounts : Not Included
- Model Number : Q9H68A
- Part Number : Q9H68A
- Condition : Seller refurbished
- One (1) Seller refurbished HPE Aruba Q9H68A AP-514 (US) Dual Radio 4x4:4 + 2x2:2 802.11ax Ex Ant (TAA) WAP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Adapter Not Included
- Power Injector Not Included
- Wall Mount Bracket Not Included
