Ruckus Brocade ICX7150-24P-2X10G 24x 1GB PoE+ RJ-45 2x 10GB SFP+ Switch

Ruckus Brocade ICX7150-24P-2X10G 24x 1GB PoE+ RJ-45 2x 10GB SFP+ Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-6261
UPC: 098379121976

Overview

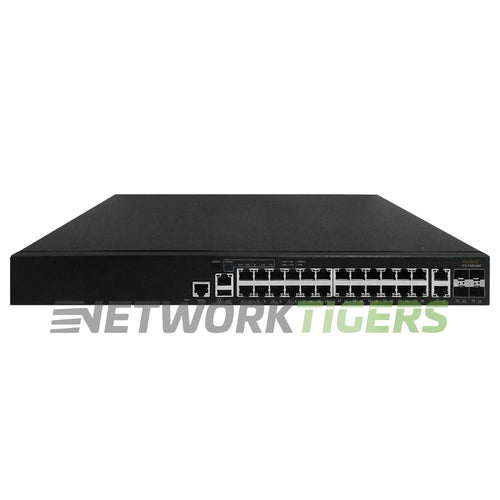

The Ruckus Brocade ICX7150-24P-2X10G is a high-performance switch that offers 24 ports of Power over Ethernet (PoE+) RJ-45, along with two additional 10GB SFP+ uplink ports. This makes it ideal for network setups requiring PoE capabilities and fast gigabit connections.

With a generous PoE budget of 370W, this switch can easily power multiple devices, such as IP phones, wireless access points, and security cameras, without needing separate power sources or injectors.

Featuring a switching capacity of impressive 132 Gbps and a forwarding rate of 98 Mpps, this switch ensures seamless data transfer across your network. Its large MAC address table size supports up to 16,384 active addresses - perfect for handling multiple clients in a corporate environment.

Ruckus Brocade ICX7150-24P-2X10G: Ruckus ICX 7150 Switch, 24x 10/100/1000 Mbps PoE+ ports, 2x 1 GbE RJ45 uplink-ports, 2x 1 GbE SFP and 2x 10 GbE SFP+ stacking/uplink-ports upgradable to 4x 10 GbE SFP+ with license, 370 W PoE budget, basic Layer 3 (static routing and RIP).


Specifications

  • Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ-45
  • Uplink Ports : 2x 1 Gigabit Ethernet RJ-45 Uplink, 2x 1 Gigabit Ethernet SFP, 2x 10 Gigabit Ethernet SFP+ ( upgradable to 4x 10 GbE SFP+ with license)
  • Management Ports : 1x RJ-45 Serial Console, 1x RJ-45 Out of Band Management, 1x USB Type C, 1x USB (for external file storage)
  • Aggregated stacking bandwidth (data rate, full duplex) : 480 Gbps
  • Fan Modules AirFlow Direction : Side to Back Airflow
  • Power Supplies Included : 1x Internal AC Power Supply
  • PoE Budget : 370W
  • Switching Capacity : 132 Gbps
  • Forwarding Rate : 98 Mpps
  • MAC Address Table Size : 16,384
  • Rack Mounts : Included (1-RU)
  • Model Number : ICX7150-24P-2X10G
  • Part Number : ICX7150-24P-2X10G
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Ruckus Brocade ICX7150-24P-2X10G 24x 1GB PoE+ RJ-45 2x 10GB SFP+ Switch as described above
  • One (1) Power Cord Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
