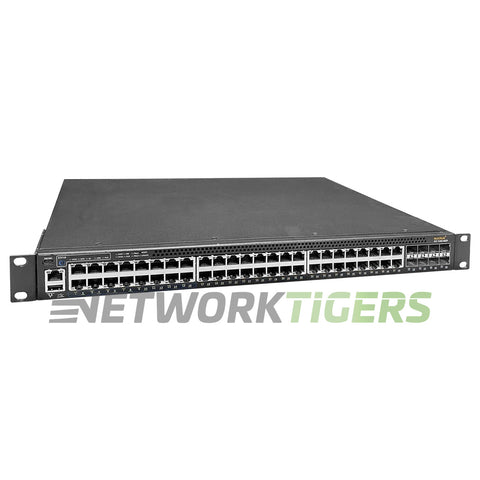

NEW Ruckus ICX7150-48ZP-E2X10G 16x 2.5GB PoH 32x 1GB PoE+ 6x SFP 2x SFP+ Switch
New

NEW Ruckus ICX7150-48ZP-E2X10G 16x 2.5GB PoH 32x 1GB PoE+ 6x SFP 2x SFP+ Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-7948

Overview

The Ruckus ICX7150-48ZP-E2X10G switch is an excellent choice for network infrastructures that require high-speed and reliable connectivity. With 16 ports of 2.5GB PoH/PoE+, this switch provides fast data transfer rates, making it perfect for bandwidth-intensive applications such as video streaming.

The inclusion of 32 ports of 1GB PoE+ ensures seamless power delivery to connected devices like IP phones or wireless access points without needing additional power sources.

Equipped with a total switching capacity of 304 Gbps and a forwarding rate of up to 226 Mpps, this versatile switch can handle heavy network traffic efficiently.

Its maximum MAC address table size supports up to an impressive count of 16,384 MAC addresses – enabling easy management and identification within complex networks.

Ruckus ICX 7150 Z-Series Switch: 16x 100/1000 Mbps/2.5 Gbps PoH ports, 32x 10/100/1000 PoE+ ports, 6x1 GbE SFP uplink ports and 2x 10 GbE SFP+ stacking/uplink-ports upgradable to up to 8x 10 GbE SFP+ with license, 1x 920 W AC power supply, 1 fan, 740 W PoE budget, base L3 (static routing and RIP).


Specifications

  • Network Ports : 16x 100/1000 Mbps/2.5 Gigabit Ethernet PoH RJ-45, 32x Gigabit Ethernet PoE+ RJ-45
  • Uplink Ports : 6x 1 Gigabit Ethernet SFP, 2x 10 Gigabit Ethernet SFP+
  • Management Ports : 1x RJ-45 Serial Console, 1x RJ-45 Out of Band Management, 1x USB Type C, 1x USB (for external file storage)
  • Aggregated stacking bandwidth (data rate, full duplex) : 480 Gbps
  • Flash : 2GB
  • Fan Modules AirFlow Direction : Front to Back Airflow
  • Power Supplies Included : 2x PSU Slots - 2x 920W PSU's Included
  • PoE Budget : 1,480 W (PoE+/PoH/802.3bt budget (up to 1,480 watts) - Up to 90W per port, IEEE 802.3bt standard pending ratification. Compatible with uPoE.
  • Switching Capacity : 304 Gbps
  • Forwarding Rate : 226 Mpps
  • Maximum MAC Addresses : 16,384
  • DRAM : 1GB
  • Rack Mounts : Included (1-RU)
  • Model Number : ICX7150-48ZP-E2X10G
  • Part Number : ICX7150-48ZP-E2X10G
  • Condition : New


Included

  • One (1) New Ruckus ICX7150-48ZP-E2X10G 16x 2.5GE PoH 32x GE PoE+ 6x SFP 2x SFP+ Switch as described above
