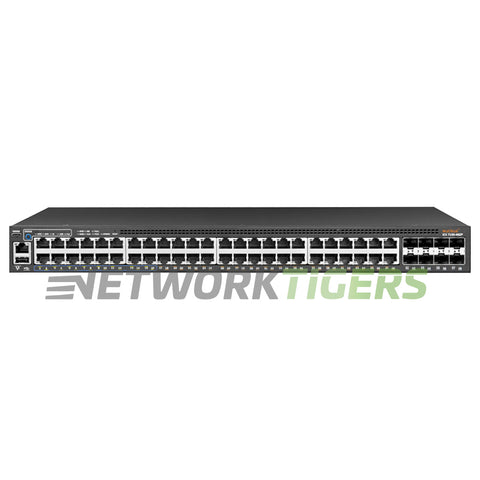

NEW Ruckus ICX7150-48ZP-E8X10GR 16x 2.5GB PoH RJ45 32x PoE+ 8x 10G SFP+ Switch
New

NEW Ruckus ICX7150-48ZP-E8X10GR 16x 2.5GB PoH RJ45 32x PoE+ 8x 10G SFP+ Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-7949

Overview

The Ruckus ICX7150-48ZP-E8X10GR is a high-performance switch that offers robust power and connectivity options. With 16x 2.5GB PoH RJ45 ports, it provides fast data transfer speeds for your network devices. The switch features 32x PoE+ ports, allowing you to power compatible PoE+ devices.

With a total budget of 740W and a switching capacity of up to 304 Gbps, this switch can handle heavy workloads and ensure smooth communication between connected devices. The forwarding rate of up to 226 Mpps guarantees efficient packet processing.

Equipped with a MAC Address Table Size capable of storing up to 16,384 addresses, this switch enables seamless communication across your network infrastructure.

Ruckus ICX 7150 Z-Series switch, 16x 100/1000 Mbps/2.5 Gbps PoH ports, 32x 10/100/1000 PoE+ ports, 8x 10 GbE SFP+ stacking/uplink-ports (max 4 for stacking), 1x920 W AC power supply, one fan, 740 W PoE budget, L3 features (OSPF, VRRP, PIM, PBR)


Specifications

  • Network Ports : 16x 100/1000 Mbps/2.5 Gigabit Ethernet PoH RJ45, 32x Gigabit Ethernet PoE+ RJ45
  • Uplink Ports : 8x 10 Gigabit Ethernet SFP+
  • Management Ports : 1x RJ45 Serial Console, 1x RJ45 Out of Band Management, 1x USB Type C, 1x USB (for external file storage)
  • Aggregated stacking bandwidth (data rate, full duplex) : 480 Gbps
  • AirFlow Direction : Front to Back Airflow
  • Fan Module Options : 1x Fan Module Included
  • Power Supplies Included : 2x PSU Slots - 1x 920W PSU Included
  • PoE Budget : 740W
  • Switching Capacity : 304 Gbps
  • Forwarding Rate : 226 Mpps
  • MAC Address Table Size : 16,384
  • DRAM and Flash : 1GB (DRAM), 2GB (Flash)
  • Model Number : ICX7150-48ZP-E8X10GR
  • Part Number : ICX7150-48ZP-E8X10GR
  • Condition : New


Included

  • One (1) New Ruckus ICX7150-48ZP-E8X10GR 16x 2.5GE PoH RJ45 32x PoE+ 8x 10G SFP+ Switch as described above
